RIEGLER 2/2-sol.valve,NC,pilot oper.,230V,50Hz,10VA,FKM,G1/2,PN0.2-16bar
Type number: MV 1362
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way MV, MS, NC, pilot operated, 230V 50Hz, 10VA, medium temp. -10°C to 140°C, FKM, G 1/2, PN 0.2 - 16bar
| Housing | Brass |
| Sealing material | FPM |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 9/PG 11, to ISO 4400 |
| Operating pressure min. | 0.2 bar |
| Max. operating pressure | 16 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 140 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Interior parts | Stainless steel |
| Valve seat | Brass |
| Thread | G 1/2 |
| DN | 13 |
| Design | 5 |
| Function | normally closed (NC) |
| A | 40 mm |
| B | 66 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

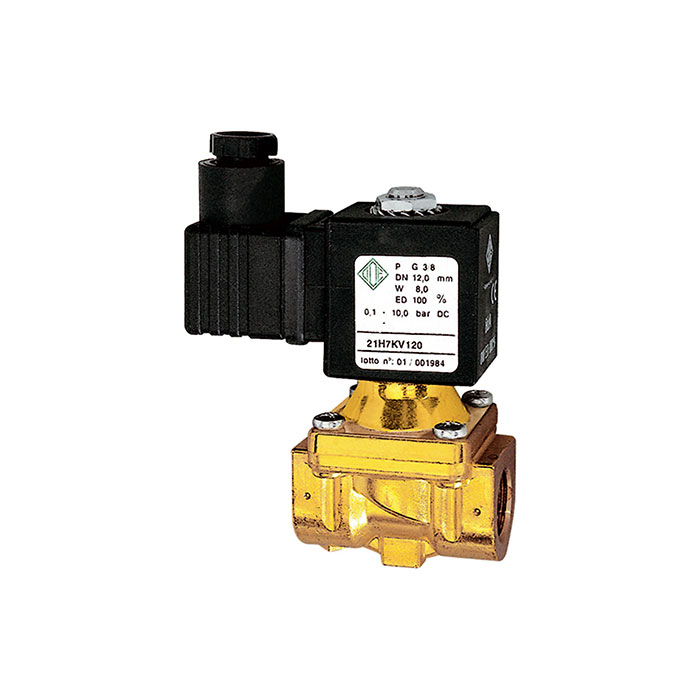

![[102919] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,FKM,G1/2,0.1-20bar](/web/image/product.template/170888/image_128/%5B102919%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CFKM%2CG1-2%2C0.1-20bar?unique=9fad592)
|
Type number: MV 1357 |
57.48 € | |
![[102922] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,FKM,G1/2,0.2-16bar](/web/image/product.template/170891/image_128/%5B102922%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CFKM%2CG1-2%2C0.2-16bar?unique=229e7ae)
|
Type number: MV 1360 |
63.86 € | |
![[102913] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,FKM,G3/8,0.1-20bar](/web/image/product.template/170882/image_128/%5B102913%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CFKM%2CG3-8%2C0.1-20bar?unique=f4d5c1b)
|
Type number: MV 1351 |
57.48 € | |
![[102916] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,FKM,G3/8,0.2-16bar](/web/image/product.template/170885/image_128/%5B102916%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CFKM%2CG3-8%2C0.2-16bar?unique=04d4698)
|
Type number: MV 1354 |
63.86 € | |
![[102926] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,NBR,G1,0.2-16bar](/web/image/product.template/170895/image_128/%5B102926%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CNBR%2CG1%2C0.2-16bar?unique=5a55d95)
|
Type number: MV 1364 |
104.66 € | |
![[102928] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,NBR,G11/2,0.2-10bar](/web/image/product.template/170897/image_128/%5B102928%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CNBR%2CG11-2%2C0.2-10bar?unique=0ae3b71)
|
Type number: MV 1366 |
217.10 € | |
![[102927] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,NBR,G11/4,0.2-10bar](/web/image/product.template/170896/image_128/%5B102927%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CNBR%2CG11-4%2C0.2-10bar?unique=db39330)
|
Type number: MV 1365 |
205.33 € | |
![[102920] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,NBR,G1/2,0.1-20bar](/web/image/product.template/170889/image_128/%5B102920%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CNBR%2CG1-2%2C0.1-20bar?unique=f615feb)
|
Type number: MV 1358 |
54.30 € | |

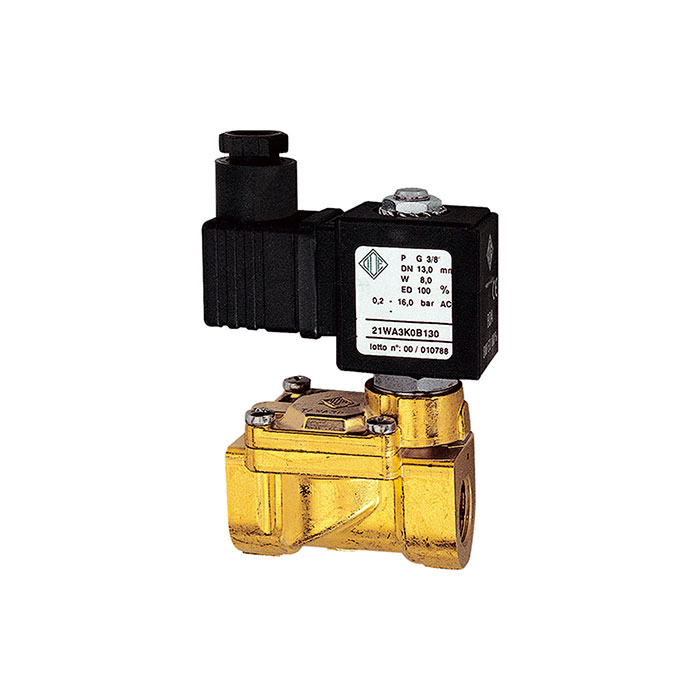

![[102921] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,NBR,G1/2,0.2-16bar](/web/image/product.template/170890/image_128/%5B102921%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CNBR%2CG1-2%2C0.2-16bar?unique=b79b0e7)
|
Type number: MV 1359 |
59.74 € | |

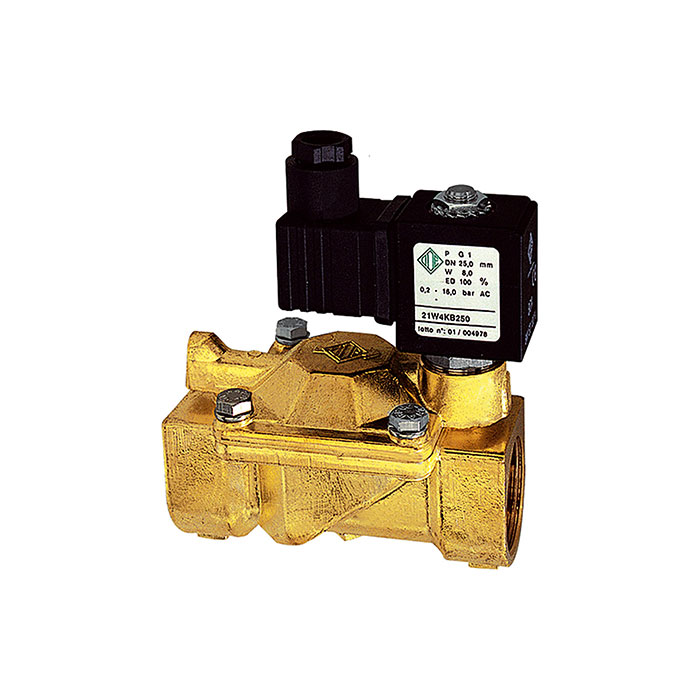

![[102929] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,NBR,G2,PN0.2-10bar](/web/image/product.template/170898/image_128/%5B102929%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CNBR%2CG2%2CPN0.2-10bar?unique=e62f4a3)
|
Type number: MV 1367 |
322.63 € | |
![[102925] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,NBR,G3/4,0.2-16bar](/web/image/product.template/170894/image_128/%5B102925%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CNBR%2CG3-4%2C0.2-16bar?unique=804786a)
|
Type number: MV 1363 |
95.68 € | |
![[102914] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,NBR,G3/8,0.1-20bar](/web/image/product.template/170883/image_128/%5B102914%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CNBR%2CG3-8%2C0.1-20bar?unique=2636378)
|
Type number: MV 1352 |
54.30 € | |
![[102915] RIEGLER 2/2-sol.valve,NC,pilot oper.,230-240V,50-60Hz,NBR,G3/8,0.2-16bar](/web/image/product.template/170884/image_128/%5B102915%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230-240V%2C50-60Hz%2CNBR%2CG3-8%2C0.2-16bar?unique=b710df2)
|
Type number: MV 1353 |
59.74 € | |
![[102918] RIEGLER 2/2-sol.valve,NC,pilot oper.,230V,50Hz,10VA,FKM,G3/8,PN0.2-16bar](/web/image/product.template/170887/image_128/%5B102918%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230V%2C50Hz%2C10VA%2CFKM%2CG3-8%2CPN0.2-16bar?unique=d3d1227)
|
Type number: MV 1356 |
54.30 € | |

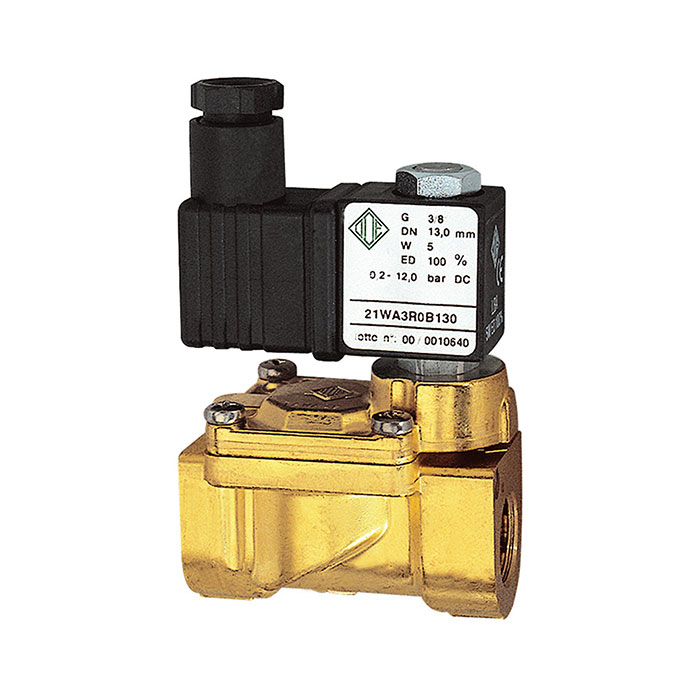

![[102923] RIEGLER 2/2-sol.valve,NC,pilot oper.,230V,50Hz,10VA,NBR,G1/2,PN0.2-16bar](/web/image/product.template/170892/image_128/%5B102923%5D%20RIEGLER%202-2-sol.valve%2CNC%2Cpilot%20oper.%2C230V%2C50Hz%2C10VA%2CNBR%2CG1-2%2CPN0.2-16bar?unique=8fb682e)
|
