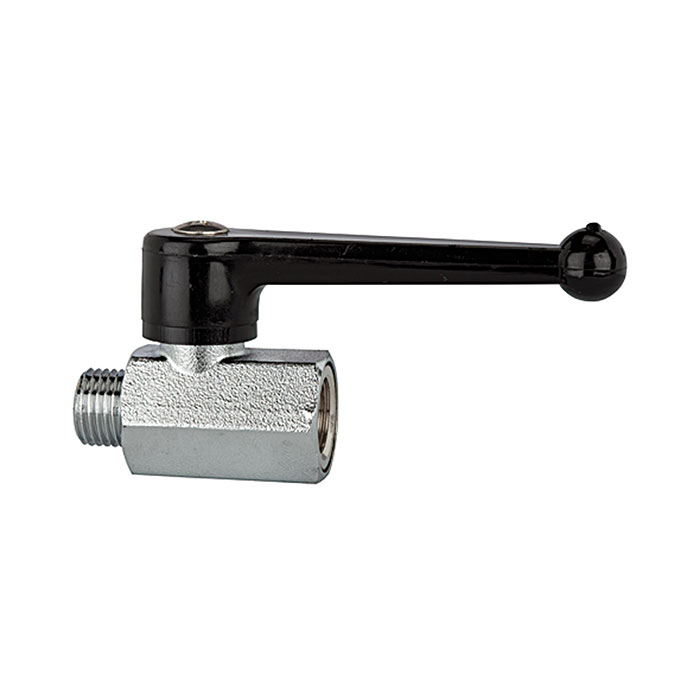

RIEGLER Mini ball valve, Sand blasted, Manual lever, G 3/8 IT/ET
Type number: 374.22
EAN: 4047322080996
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mini ball valve, sandblasted, MS nickel-plated, hand lever, medium/ambient temp. -10 °C to 90 °C, G 3/8 female/male, DN 8, PN max. 10 bar
| Housing | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| Area of application | Compressed air, water, oils, non-toxic gases |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | FKM |
| Hand lever | Plastic |
| Thread | G 3/8 IG/AG |
| DN | 8 |
| SW | 20 mm |
| A | 68.5 mm |
| L | 41.5 mm |
| E | 10 mm |
| F | 10 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Nickel-plated brass |
| Class name | PLUS |
