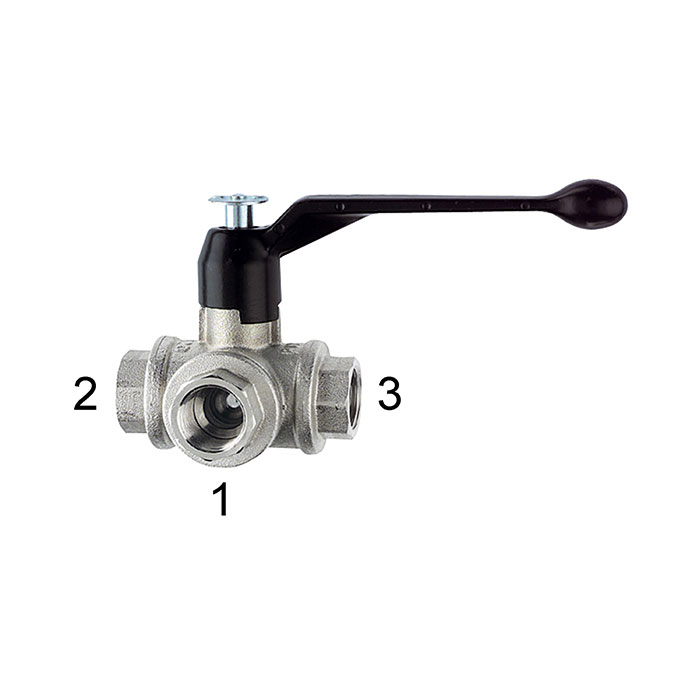

RIEGLER 3-way ball valve, L-hole, nickel-plated brass, Rp 2, DN 50
Type number: 1083 H
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3-way ball valve, L-bore, nickel-plated brass, medium/ambient temp. -15 °C to 100 °C, Rp 2, DN 50, PN max. 16 bar
| Housing | Nickel-plated brass |
| Sealing material | PTFE / FKM |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 100 °C |
| Ball | Brass bright |
| Hand lever | Aluminum, painted black |
| Spring | Stainless steel |
| Position indicator | Galvanized steel |
| Thread | Rp 2 |
| DN | 50 |
| Thread standard | Rp thread according to ISO 7-1 |
| Bore ball | 44 |
| Max. operating pressure at 20 °C | 16 bar |
| A | 235 mm |
| B | 141 mm |
| L | 169 mm |
| Execution | sealing on all sides, L-bore |
| E | 47 mm |
| C Ø | 95 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | PLUS |
