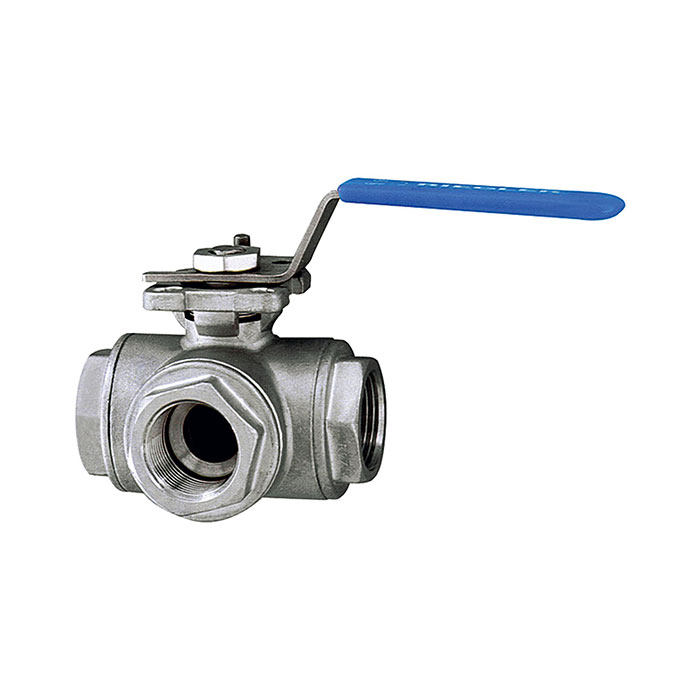

RIEGLER 3-way ball valve, T-hole, Stainless steel 1.4408, G 1 1/4, DN 32
Type number: 1082 F-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3-way ball valve, T-bore, stainless steel 1.4408, operating temperature max. 160 °C, G 1 1/4, DN 32, PN max. 63 bar
| Sealing material | RTFE |
| Max. operating pressure | 63 bar |
| Material | Stainless steel 1.4408 |
| Hand lever | Stainless steel |
| Operating temperature max. | 160 °C |
| Thread | G 1 1/4 |
| DN | 32 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 187 mm |
| B | 92 mm |
| L | 123 mm |
| C Ø | 25 mm |
