RIEGLER Stainless steel ball valve 1.4408, 1-piece, Small series, G 3/8
Type number: 374.02-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel ball valve 1.4408 made of stainless steel 1.4401/1.4408, for industrial installations, G 3/8 - Type 374.02-ES
The RIEGLER stainless steel ball valve 1.4408, 1-piece small series, G 3/8, DN 10 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4401/1.4408. The operating temperature is between -20 °C and 150 °C. Connection thread G 3/8 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4401/1.4408 |
| Ball | Stainless steel 1.4408 |
| Ball seal | RPTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| Thread | G 3/8 |
| DN | 10 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 82 mm |
| B | 30 mm |
| L | 51 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103479] RIEGLER Stainless steel ball valve 1.4408, 1-piece, Small series, G 1/2](/web/image/product.template/171441/image_128/%5B103479%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%201.4408%2C%201-piece%2C%20Small%20series%2C%20G%201-2?unique=c114cd6)
|
Type number: 374.03-ES |
33.18 € | |
![[103477] RIEGLER Stainless steel ball valve 1.4408, 1-piece, Small series, G 1/4](/web/image/product.template/171439/image_128/%5B103477%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%201.4408%2C%201-piece%2C%20Small%20series%2C%20G%201-4?unique=5e609da)
|
Type number: 374.01-ES |
27.38 € | |

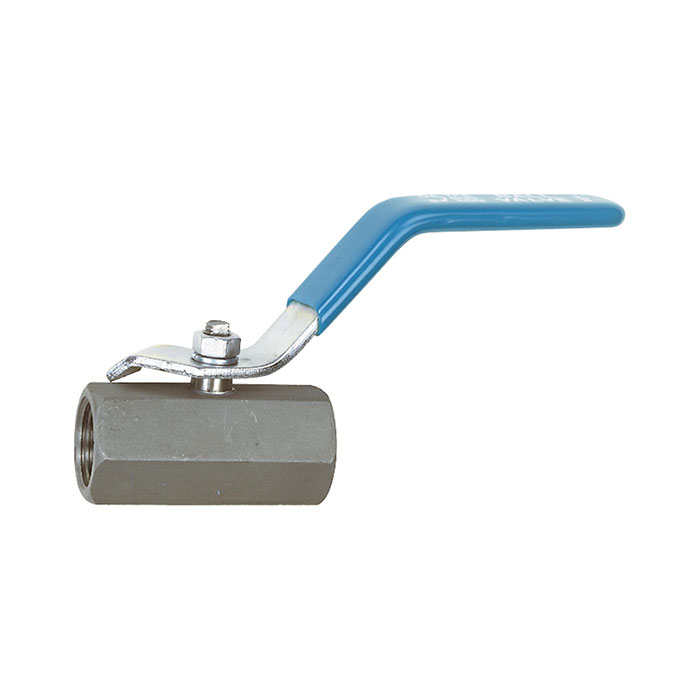

![[103480] RIEGLER Stainless steel ball valve 1.4408, 1-piece, Small series, G 3/4](/web/image/product.template/171442/image_128/%5B103480%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%201.4408%2C%201-piece%2C%20Small%20series%2C%20G%203-4?unique=3928636)
|
