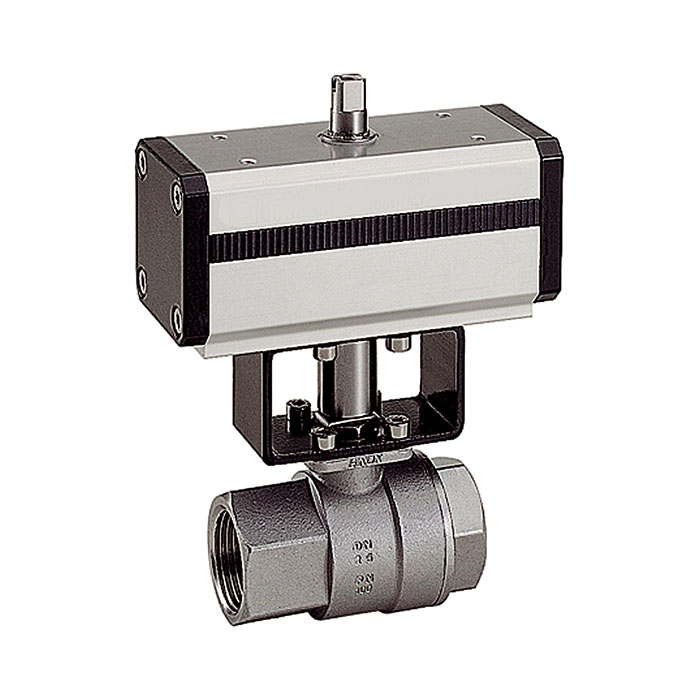

RIEGLER Stainless steel ball valve, Pneumatic actuation drive, Rp 1
Type number: 351.512
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel ball valve, pneumatic actuator, double-acting, operating temp. -20 °C to 150 °C, Rp 1, DN 25, PN max. 100 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Control pressure max. | 5.6 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Rotation angle | 90 ° |
| Valve adapter | available as standard |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Stainless steel 1.4401/1.4301/1.4310/1.4408, with ISO flange |
| Sealing material ball valve | PTFE / FKM |
| Thread | Rp 1 |
| DN | 25 |
| PN | 100 bar |
| A | 130 mm |
| B | 157 mm |
| L | 85 mm |
| Execution | double-acting |
| Class name | STAINLESS STEEL |
