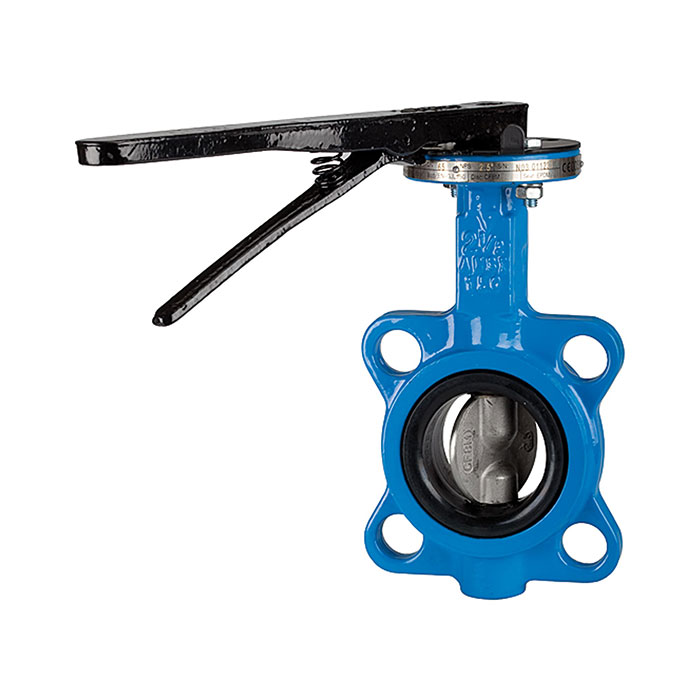

RIEGLER Intermediate flange blocking flap, Manual lever, DN 40
Type number: 350.6040B
EAN: 4047322338844
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Zwischenflansch-Absperrklappe, Handhebel, Betriebstemp. -15 °C bis 120 °C, DN 40, PN max. 16 bar
| Housing | Grey cast iron GG25 epoxy resin coated, color RAL 5015 |
| Sealing material | EPDM |
| Max. operating pressure | 16 bar |
| Hand lever | GG25 epoxy resin coated |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 120 °C |
| Shift shaft | SS416 |
| Shift shaft seal | EPDM |
| Shaft | SS416 |
| DN | 40 |
| Disc | Stainless steel CF8M/1.4404 |
| B | 38 mm |
| L | 94 mm |
| H1 | 68 mm |
| H2 | 94 mm |
| H3 | 198 mm |
| Class name | FLEX |
