RIEGLER High performance safety valve, G 1, Trigger pressure 2 bar
Type number: 1144.03-2,0
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
105224EAN :
4047322018401Category :
Safety valves & pressure relief valvesWeight :
0.88 kgHigh-performance safety valve, vibration-proof design, brass, max. operating temp. 260 °C, G 1, SW 41, response pressure 2 bar
| Housing | Brass |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 30 bar |
| Spring cover | Brass |
| Operating temperature max. | 260 °C |
| Thread | G 1 |
| SW | 41 mm |
| Response pressure min. | 2 bar |
| A | 16 mm |
| H | 185 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| do | 20 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

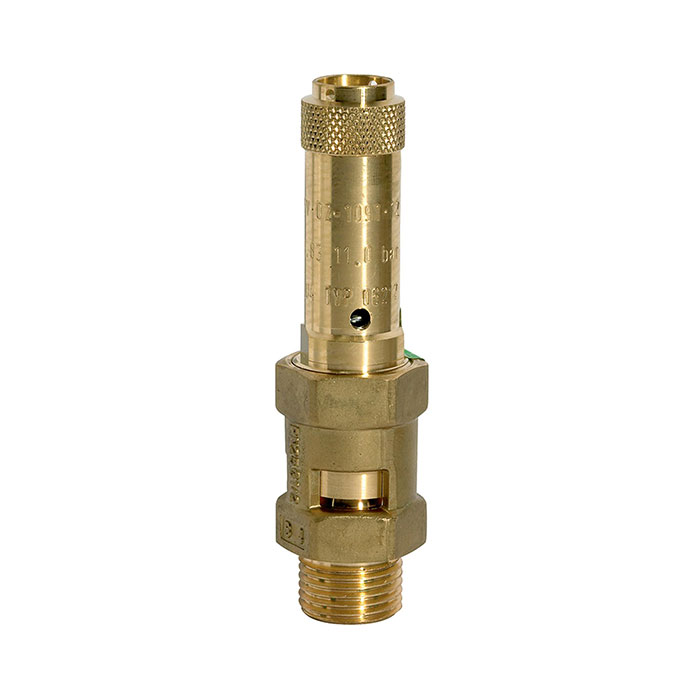

![[104923] RIEGLER Safety valve, Brass, G 1, Trigger pressure 2 bar](/web/image/product.template/172871/image_128/%5B104923%5D%20RIEGLER%20Safety%20valve%2C%20Brass%2C%20G%201%2C%20Trigger%20pressure%202%20bar?unique=1d909dd)
|
Type number: 229.03-2,0 |
132.84 € | |
