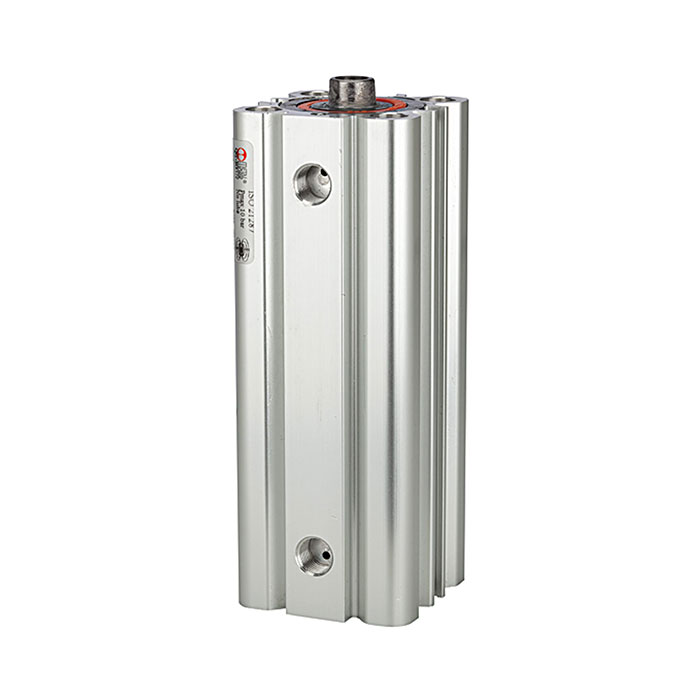

RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 30, G 1/8

Price:

57.08 €
    ​
English (US)
  2. Shop
  3. Compact Cylinders
  4. RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 30, G 1/8
RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 25, G 1/8
RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 25, G 1/8
56.66 €
56.66 €
RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 40, G 1/8
RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 40, G 1/8
57.92 €
57.92 €

RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 30, G 1/8

https://www.filcom-technik.de/web/image/product.template/173937/image_1920?unique=594d166

Type number: 7.DMI.32030

EAN: 4047322283106

57.08 € 57.08 EUR 57.08 € VAT Included

73.80 € VAT Included

    This combination does not exist.

    from 110 € free shipping Details shipping costs
    Contact Us
    Product no. :
    105990
    Category :
    Compact Cylinders
    Weight :
    0.28 kg

    Compact cylinder LINER, ISO 21287, double-acting, internal thread, solenoid, piston Ø 32, stroke 30, G1/8, max. working pressure 10 bar, temp. -10°C to 60°C

    Temperature range min. -10 °C
    Temperature range max. 60 °C
    Series Serie LINER
    Working pressure max. 10 bar
    Pipe Aluminium profile tube with T-slots, anodized
    Piston rod seal PU
    Piston seal PU
    Piston Ø 32 mm
    Function doppeltwirkend
    Response pressure min. 0.6 bar
    Stroke 30 mm
    Piston rods IG M8
    Connection G 1/8
    Piston rod Stahl C45, hartverchromt
    Piston POM
    Class name PLUS
    Magnet with magnet
    Standard according to ISO 21287
    Thread piston rod Internal thread on the piston rod
    Static O-rings NBR
