RIEGLER Valve disc HDM Connection 4 mm 5/2-way monostable, only use 1 pin

Price:

81.59 €

RIEGLER Valve disc HDM Connection 4 mm 5/2-way monostable
RIEGLER Valve disc HDM Connection 4 mm 5/2-way monostable
81.59 € 81.59 €
RIEGLER Valve disc HDM Connection 6 mm 2x3/2 NC mono or 5/3 centre vented
RIEGLER Valve disc HDM Connection 6 mm 2x3/2 NC mono or 5/3 centre vented
118.20 € 118.20 €

RIEGLER Valve disc HDM Connection 4 mm 5/2-way monostable, only use 1 pin

https://www.filcom-technik.de/web/image/product.template/175735/image_1920?unique=e2dabad

Type number: F 4

EAN: 4047322286596

81.59 € 81.59 EUR 81.59 € VAT Included

105.48 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

106678

EAN :

4047322286596

Category :

Valve Terminals

Weight :

0.10 kg

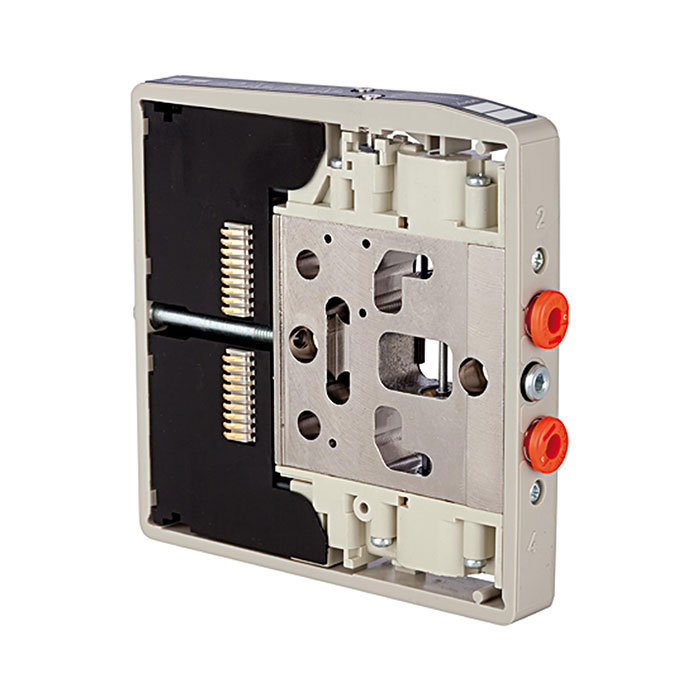

Valve disk for valve terminal HDM, connection 4 mm, 5/2-way, monostable (uses only one PIN, occupies 2 signals)

Temperature range min. -10 °C
Temperature range max. 60 °C
Power consumption 0.6 W per actuation
Protection class IP 65
Material Aluminum
Control up to 16 actuations (e.g. 16 spring-return valves)
Manual override resting
Function 5/2-way, monostable (uses only one PIN and occupies 2 signals)
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
Flow rate 200 Nl/min
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Class name MAX
