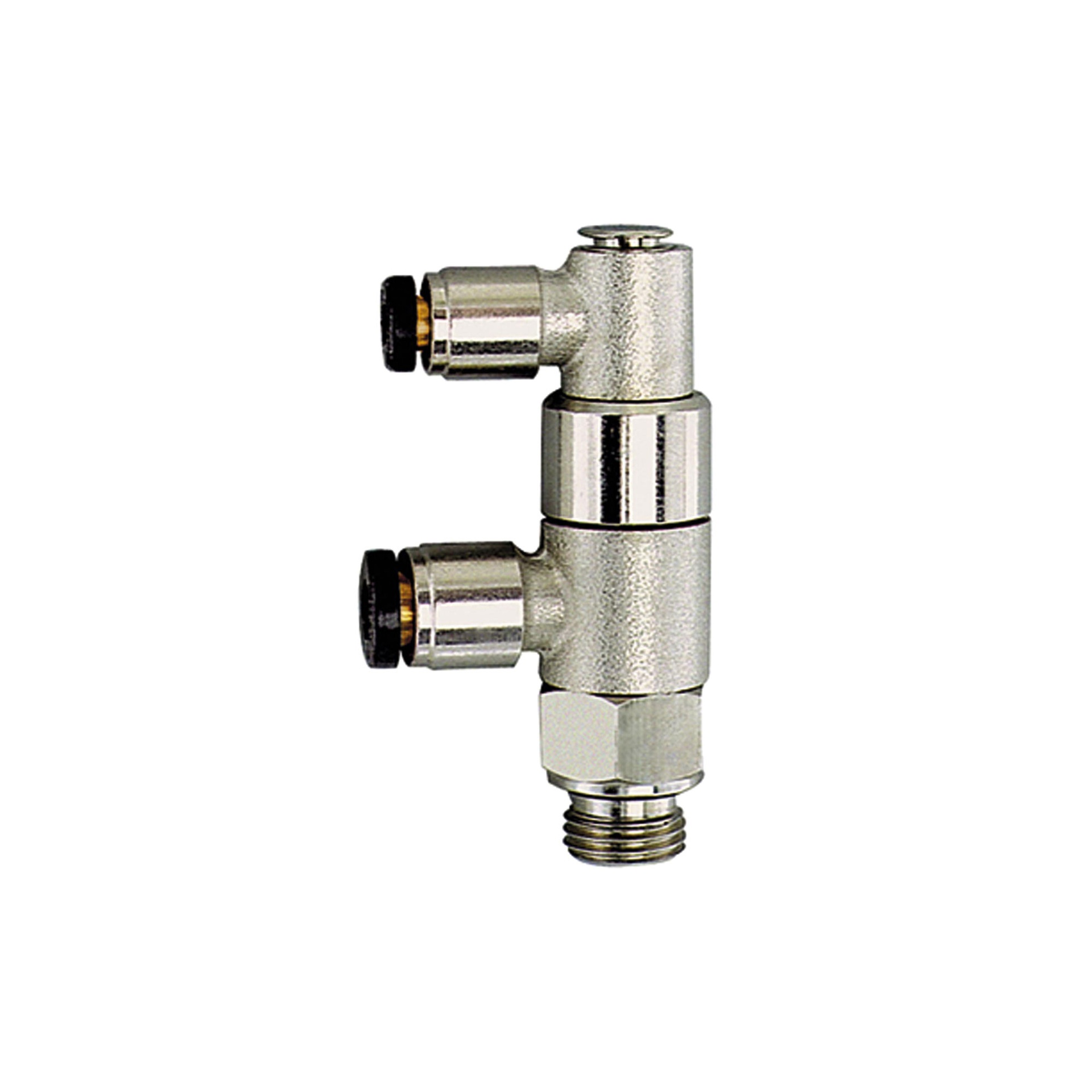

RIEGLER Stopper valve pneumatically actuated, G 1/2, Plug connector 12/4
Type number: 67.012-12
EAN: 4047322111522
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pneumatically actuated stop valve, G1/2, push-in connection 12/4, max. working pressure 10 bar, medium/ambient temp. -10°C to 70°C, MS nickel-plated
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 70 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 70 °C |
| Material | Nickel-plated brass |
| Installation position | any, ring piece can be rotated 360° after tightening |
| Control pressure min. | 1 bar |
| Control pressure max. | 5 bar |
| Connection | G 1/2 |
| Connection | 12 mm |
| Connection | 4 mm |
| B | 72 mm |
| C | 41 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
