RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Hose 4x3
Type number: 243.08/7-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Hose connection 4x3, Operating pressure 0 - 35 bar, Temp. -15°C to 200°C
| Housing | Stainless steel 1.4404 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 200 °C |
| Flow rate | 165 l/min (air) |
| Ball | Stainless steel 1.4404 |
| Spring | Stainless steel 1.4404 |
| Valve body | Stainless steel 1.4404 |
| Sleeve | Stainless steel 1.4404 |
| Snap ring | Stainless steel 1.4404 |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| SW | 9 mm |
| NW | 2.7 |
| Length | 34 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | Trouser connection 4x3 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107114] RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Hose 5x3](/web/image/product.template/176171/image_128/%5B107114%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20Stainless%20steel%201.4404%2C%20Hose%205x3?unique=78681ea)
|
Type number: 243.08/8-ES |
132.42 € | |

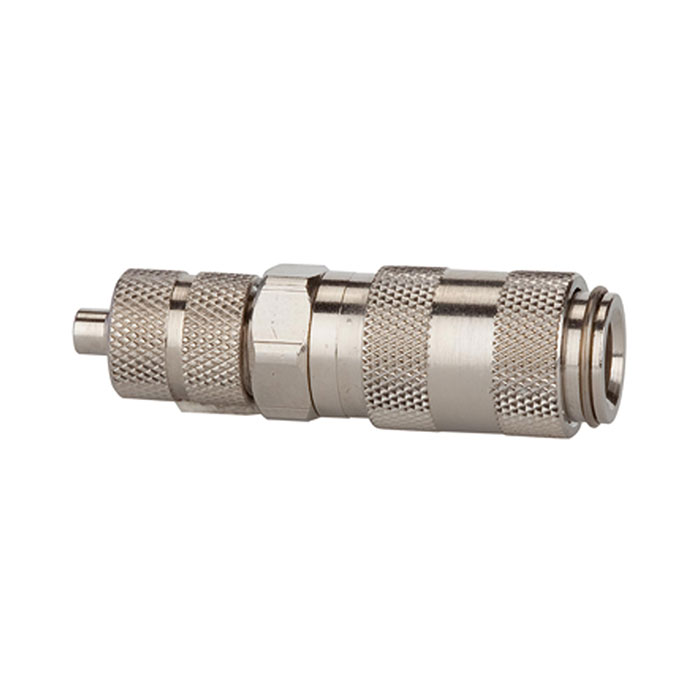

![[107115] RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Hose 6x4](/web/image/product.template/176172/image_128/%5B107115%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20Stainless%20steel%201.4404%2C%20Hose%206x4?unique=0048bec)
|
Type number: 243.08/9-ES |
132.48 € | |
