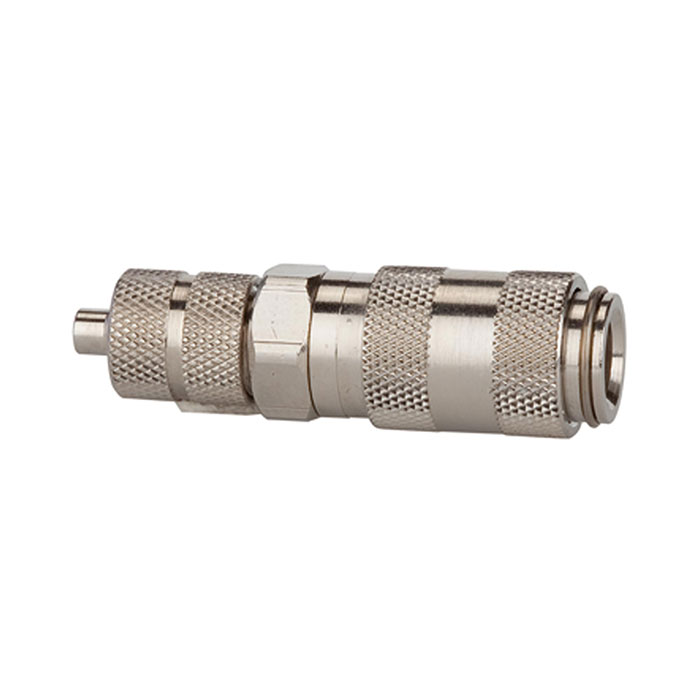

RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Hose 6x4
Type number: 243.08/9-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Quick-release coupling made of stainless steel 1.4404, for compressed air supply - Type 243.08/9-ES
The RIEGLER quick-release coupling NW 2.7, ES 1.4404, hose connection 6x4 connects and disconnects compressed air lines with a single movement - automatic sealing during disconnection. The housing is made of stainless steel 1.4404 with FKM seals. The permissible medium temperature is between -15 °C and 200 °C. Connection thread hose connection 6x4 - suitable for common industry standards. The flow rate is 165 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Stainless steel 1.4404 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 200 °C |
| Flow rate | 165 l/min (air) |
| Ball | Stainless steel 1.4404 |
| Spring | Stainless steel 1.4404 |
| Valve body | Stainless steel 1.4404 |
| Sleeve | Stainless steel 1.4404 |
| Snap ring | Stainless steel 1.4404 |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| SW | 9 mm |
| NW | 2.7 |
| Length | 34 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | Trouser connection 6x4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107113] RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Hose 4x3](/web/image/product.template/176170/image_128/%5B107113%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20Stainless%20steel%201.4404%2C%20Hose%204x3?unique=c2e9532)
|
Type number: 243.08/7-ES |
132.42 € | |

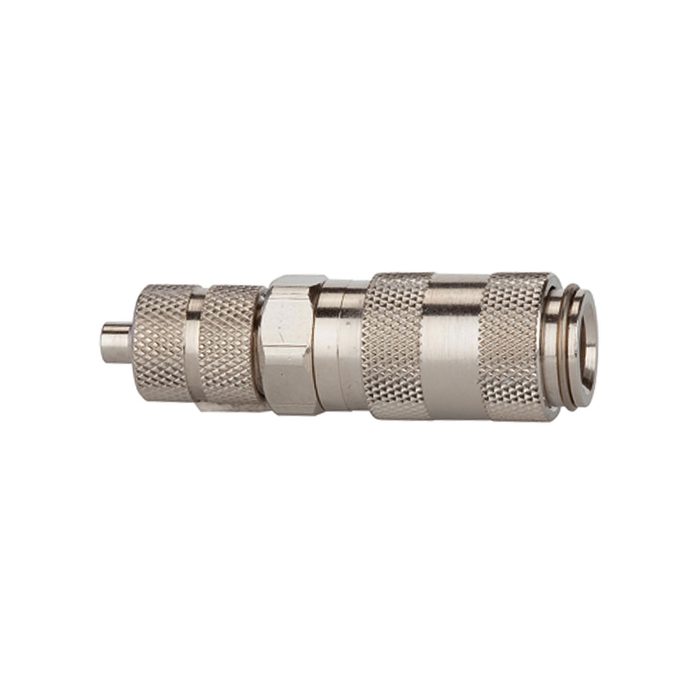

![[107114] RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Hose 5x3](/web/image/product.template/176171/image_128/%5B107114%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20Stainless%20steel%201.4404%2C%20Hose%205x3?unique=4124c72)
|
