RIEGLER Tempered plug-in nipple DN 9, with blocking valve, ET, G 1/4
Type number: 280.623
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Temperier-Einstecknippel DN 9, mit Absperrventil, AG, MS vern., G 1/4, PN max. 15 bar, Mediums-/Umgebungstemp. -20 °C bis 160 °C
| Medium | Air, water, oil, vacuum |
| Sealing material | FKM (PTFE-coated) |
| Max. operating pressure | 15 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 160 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 160 °C |
| Material | Nickel-plated brass |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Snap ring | Stainless steel |
| Thread | G 1/4 |
| SW | 15 mm |
| Length | 30 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

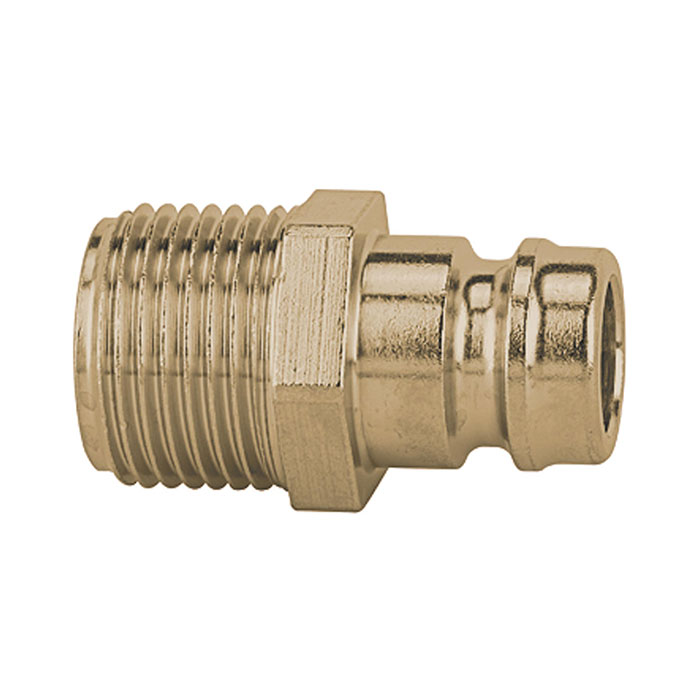

![[107985] RIEGLER Tempered plug-in nipple DN 9, with blocking valve, ET, G 1/2](/web/image/product.template/191886/image_128/%5B107985%5D%20RIEGLER%20Tempered%20plug-in%20nipple%20DN%209%2C%20with%20blocking%20valve%2C%20ET%2C%20G%201-2?unique=11f871a)
|
Type number: 280.625 |
6.24 € | |
![[107984] RIEGLER Tempered plug-in nipple DN 9, with blocking valve, ET, G 3/8](/web/image/product.template/191885/image_128/%5B107984%5D%20RIEGLER%20Tempered%20plug-in%20nipple%20DN%209%2C%20with%20blocking%20valve%2C%20ET%2C%20G%203-8?unique=5b76981)
|
Type number: 280.624 |
6.24 € | |
![[107981] RIEGLER Tempered plug-in nipple DN 9, with blocking valve, ET, M14x1.5](/web/image/product.template/191882/image_128/%5B107981%5D%20RIEGLER%20Tempered%20plug-in%20nipple%20DN%209%2C%20with%20blocking%20valve%2C%20ET%2C%20M14x1.5?unique=06f7d3f)
|
Type number: 280.620 |
6.24 € | |

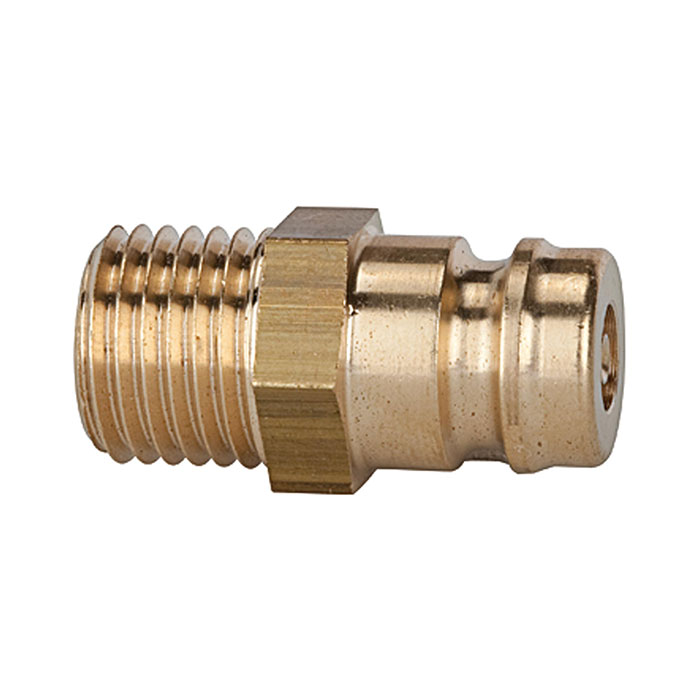

![[107982] RIEGLER Tempered plug-in nipple DN 9, with blocking valve, ET, M16x1.5](/web/image/product.template/191883/image_128/%5B107982%5D%20RIEGLER%20Tempered%20plug-in%20nipple%20DN%209%2C%20with%20blocking%20valve%2C%20ET%2C%20M16x1.5?unique=61d7a53)
|
Type number: 280.621 |
5.74 € | |
