RIEGLER Thread plug nipple »click-clock« G 1/8 o., for hose exterior Ø 6

https://www.filcom-technik.de/web/image/product.template/192602/image_1920?unique=460185a

Type number: 768.018-6

EAN: 4047322384841

0.68 € 0.68 EUR 0.68 € VAT Included

1.18 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

108705

EAN :

4047322384841

Category :

Push-In Plugs

Weight :

0.10 kg

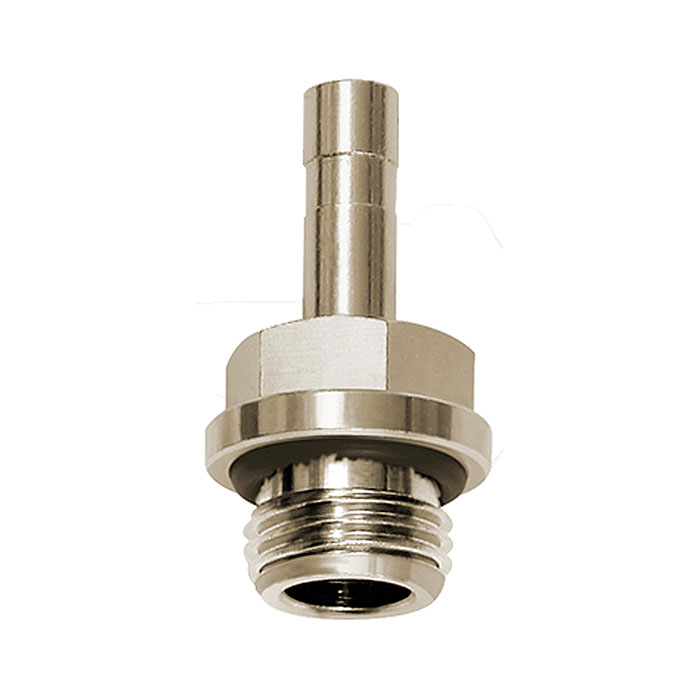

Threaded plug-in nipple "click-clock", G 1/8 a., for hose outer Ø 6 mm, working pressure -0.99 to 16 bar, nickel-plated brass

Medium Compressed air
Sealing material NBR
Series click-clock
Working pressure min. -0.99 bar
Working pressure max. 16 bar
Material Nickel-plated brass
Area of application Compressed air systems, vacuum
Operating temperature min. -20 °C
Operating temperature max. 80 °C
Clamping ring Stainless steel
Thread G 1/8
SW 13 mm
for hose outer Ø 6 mm
D 4 mm
Execution with O-ring
L1 29.4 mm
E 14.8 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Class name PLUS
