RIEGLER T-multi-distributor 4-fold »click-clock«, rotating, G 1/4 o.

Price:

11.15 €

RIEGLER T-multi-distributor 4-fold »click-clock«, rotating, G 1/4 o.
RIEGLER T-multi-distributor 4-fold »click-clock«, rotating, G 1/4 o.
9.72 € 9.72 €
RIEGLER T-multi-distributor 4-fold »click-clock«, rotating, G 1/8 o.
RIEGLER T-multi-distributor 4-fold »click-clock«, rotating, G 1/8 o.
9.58 € 9.58 €

RIEGLER T-multi-distributor 4-fold »click-clock«, rotating, G 1/4 o.

https://www.filcom-technik.de/web/image/product.template/192716/image_1920?unique=b529313

Type number: 761.014-8 M

EAN: 4047322210515

11.15 € 11.15 EUR 11.15 € VAT Included

19.53 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

108819

EAN :

4047322210515

Category :

Distributors

Weight :

0.07 kg

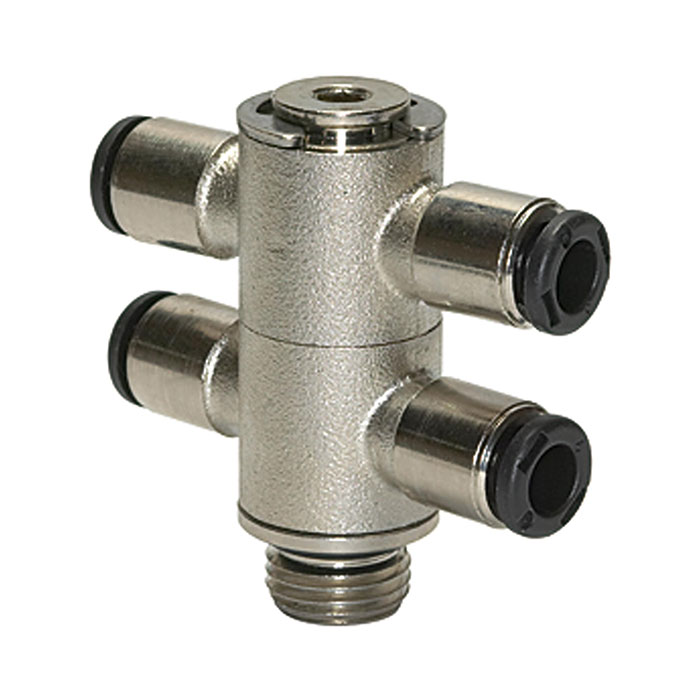

T-manifold 4-way "click-clock", rotatable, G 1/4 a., for hose outer Ø 8, working pressure -0.99 to 16 bar, nickel-plated brass.

Medium Compressed air
Sealing material NBR
Series click-clock
Working pressure min. -0.99 bar
Working pressure max. 16 bar
Material Nickel-plated brass
Area of application Compressed air systems, vacuum
Operating temperature min. -20 °C
Operating temperature max. 80 °C
Solder ring Hostaform
Clamping ring Stainless steel
Recommended hose PA, PU
Thread G 1/4
SW 4 mm
for hose outer Ø 8 mm
Execution with hexagon socket, 4-way, with O-ring
L1 53 mm
L2 47 mm
E 18 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification none
Class name PLUS
Construction method rotatable
