RIEGLER Hollow screw, Single, G 1/8

Price:

0.83 €
    ​
English (US)
  2. Shop
  3. Push-In Fittings
  4. RIEGLER Hollow screw, Single, G 1/8
RIEGLER Straight check valve »Blue Series«, Plug connector, hose ext. Ø 6
RIEGLER Straight check valve »Blue Series«, Plug connector, hose ext. Ø 6
3.07 € 3.07 €
RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/8 o.
RIEGLER Push-in L-fitting »Blue Series«, rotating, G 1/8 o.
2.18 € 2.18 €

RIEGLER Hollow screw, Single, G 1/8

https://www.filcom-technik.de/web/image/product.template/192720/image_1920?unique=5223f00

Type number: 762.018

0.83 € 0.8300000000000001 EUR 0.83 € VAT Included

1.29 € VAT Included

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

Product no. :

108823

EAN :

4047322285650

Category :

Hollow screws & ring pieces

Weight :

0.01 kg

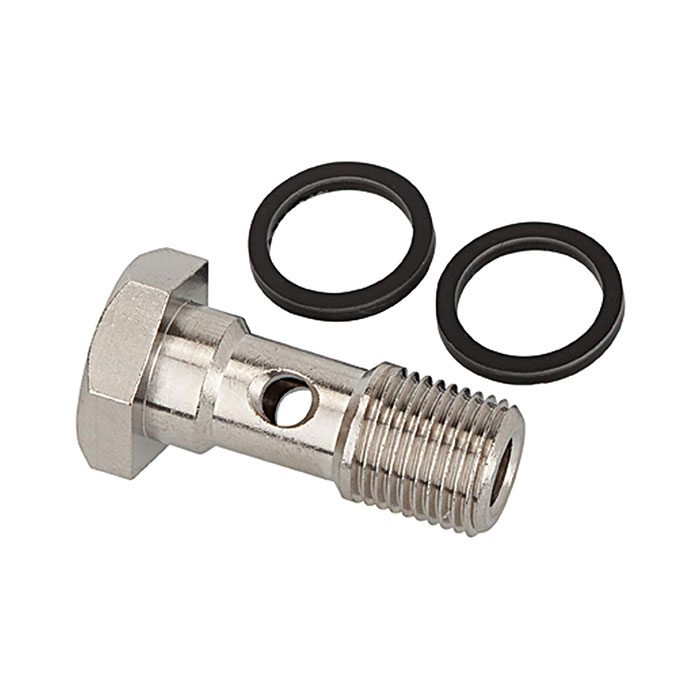

Banjo bolt, single, G 1/8, working pressure -0.98 to 16 bar, operating temperature -20 °C to 70 °C, nickel-plated brass

Medium Compressed air
Series click-clock
Working pressure min. -0.98 bar
Working pressure max. 16 bar
Material Nickel-plated brass
Area of application Compressed air systems, vacuum
Operating temperature min. -20 °C
Operating temperature max. 70 °C
Solder ring Hostaform
Clamping ring Stainless steel
Recommended hose PA, PU
Thread G 1/8
SW 14 mm
Execution 1-fold
L1 28 mm
E 9 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification none
Class name PLUS
