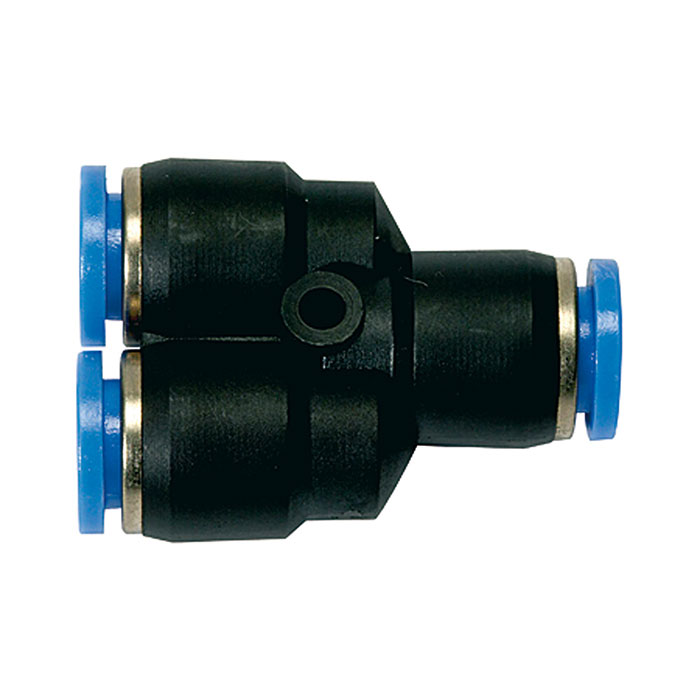

RIEGLER Push-in Y-connector »Blue Series«, for hose exterior Ø 8 mm
Type number: 140.008
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Y-Steckverbindung »Blaue Serie«, für Schlauch-Außen-Ø 8 mm, pmax kurzzeitig 15 bar, Kunststoff/Messing vernickelt
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 8 mm |
| L1 | 39.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109850] RIEGLER Push-in Y-connector »Blue Series«, for hose exterior Ø 10 mm](/web/image/product.template/178776/image_128/%5B109850%5D%20RIEGLER%20Push-in%20Y-connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2010%20mm?unique=a2352fa)
|
Type number: 140.010 |
2.99 € | |
![[109851] RIEGLER Push-in Y-connector »Blue Series«, for hose exterior Ø 12 mm](/web/image/product.template/178777/image_128/%5B109851%5D%20RIEGLER%20Push-in%20Y-connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2012%20mm?unique=3c98aa5)
|
Type number: 140.012 |
3.50 € | |
![[109852] RIEGLER Push-in Y-connector »Blue Series«, for hose exterior Ø 14 mm](/web/image/product.template/178778/image_128/%5B109852%5D%20RIEGLER%20Push-in%20Y-connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2014%20mm?unique=5ab5b45)
|
Type number: 140.014 |
3.75 € | |
![[109853] RIEGLER Push-in Y-connector »Blue Series«, for hose exterior Ø 16 mm](/web/image/product.template/178779/image_128/%5B109853%5D%20RIEGLER%20Push-in%20Y-connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2016%20mm?unique=8627f6a)
|
Type number: 140.016 |
3.93 € | |
![[109847] RIEGLER Push-in Y-connector »Blue Series«, for hose exterior Ø 4 mm](/web/image/product.template/178773/image_128/%5B109847%5D%20RIEGLER%20Push-in%20Y-connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%204%20mm?unique=425f81a)
|
Type number: 140.004 |
1.74 € | |
![[109848] RIEGLER Push-in Y-connector »Blue Series«, for hose exterior Ø 6 mm](/web/image/product.template/178774/image_128/%5B109848%5D%20RIEGLER%20Push-in%20Y-connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%206%20mm?unique=74c4dcb)
|
Type number: 140.006 |
2.12 € | |
