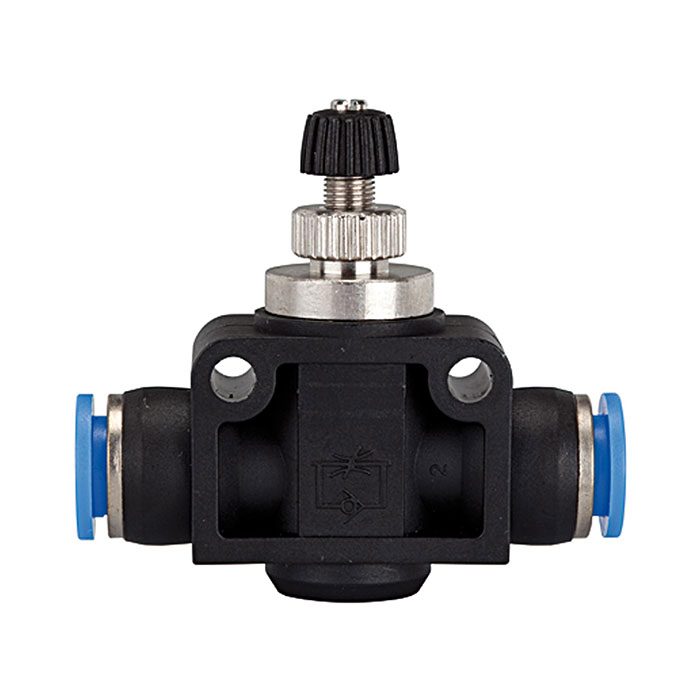

RIEGLER Throttle check valve »Blue Series«, Plug connector, hose ext. Ø 8
Type number: 181.0808
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Throttle check valve "Blue Series", push-in connection, straight, f. male Ø 8 mm, pmax short-time 15 bar, plastic/MS nickel-plated
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 8 mm |
| L1 | 52 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| L2 min. | 44.4 mm |
| L2 max. | 51.5 mm |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109975] RIEGLER Throttle check valve »Blue Series«, Plug connector, hose ext. Ø10](/web/image/product.template/178887/image_128/%5B109975%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20hose%20ext.%20%C3%9810?unique=2a42248)
|
Type number: 181.1010 |
6.15 € | |
![[109976] RIEGLER Throttle check valve »Blue Series«, Plug connector, hose ext. Ø12](/web/image/product.template/178888/image_128/%5B109976%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20hose%20ext.%20%C3%9812?unique=64d9a27)
|
Type number: 181.1212 |
7.83 € | |
![[109972] RIEGLER Throttle check valve »Blue Series«, Plug connector, hose ext. Ø 4](/web/image/product.template/178884/image_128/%5B109972%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20hose%20ext.%20%C3%98%204?unique=0d153aa)
|
Type number: 181.0404 |
2.68 € | |
![[109973] RIEGLER Throttle check valve »Blue Series«, Plug connector, hose ext. Ø 6](/web/image/product.template/178885/image_128/%5B109973%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20hose%20ext.%20%C3%98%206?unique=58b001a)
|
Type number: 181.0606 |
3.25 € | |
