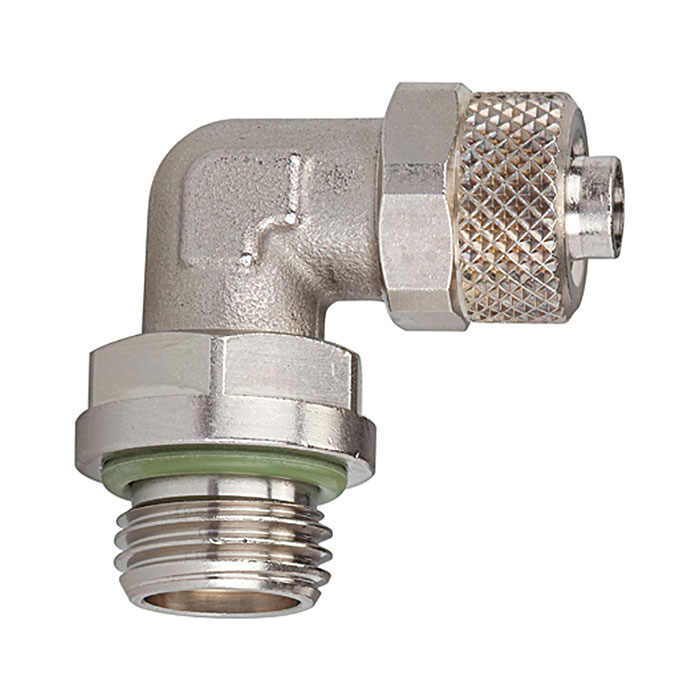

RIEGLER Angled screw-in fitting, rotating, G 1/4 o., for hose 10/8 mm
Type number: 13.514-10-V
EAN: 4047322272308
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Elbow screw-in fitting, FKM O-ring, rotatable, G 1/4 a., for hose 10/8 mm, SW 12, max. working pressure 18 bar, MS nickel-plated.
| Working pressure max. | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| Thread | G 1/4 |
| SW | 12 mm |
| for hose | 10/8 mm |
| L1 | 24 mm |
| L2 | 24 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| O-ring | FKM |
| Class name | EASY |
