RIEGLER Bulkhead connector with mounting nuts, M16x1, for hose 12/9, POM
Type number: 15.888
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bulkhead connector for pneumatic installation, max. 10 bar, M16x1.0 - Type 15.888
The RIEGLER bulkhead connector, fastening nuts, M16x1.0, hose 12/9, POM connects compressed air hoses and pipes quickly and securely by simply screwing them in. The operating pressure range is 0 bar to 10 bar. The temperature range is between -10 °C and 60 °C. M16x1.0 connection thread - suitable for common industry standards. Easy installation and removal for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Thread | M16x1.0 |
| SW | 19 mm |
| for hose | 12/9 mm |
| L1 | 60 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

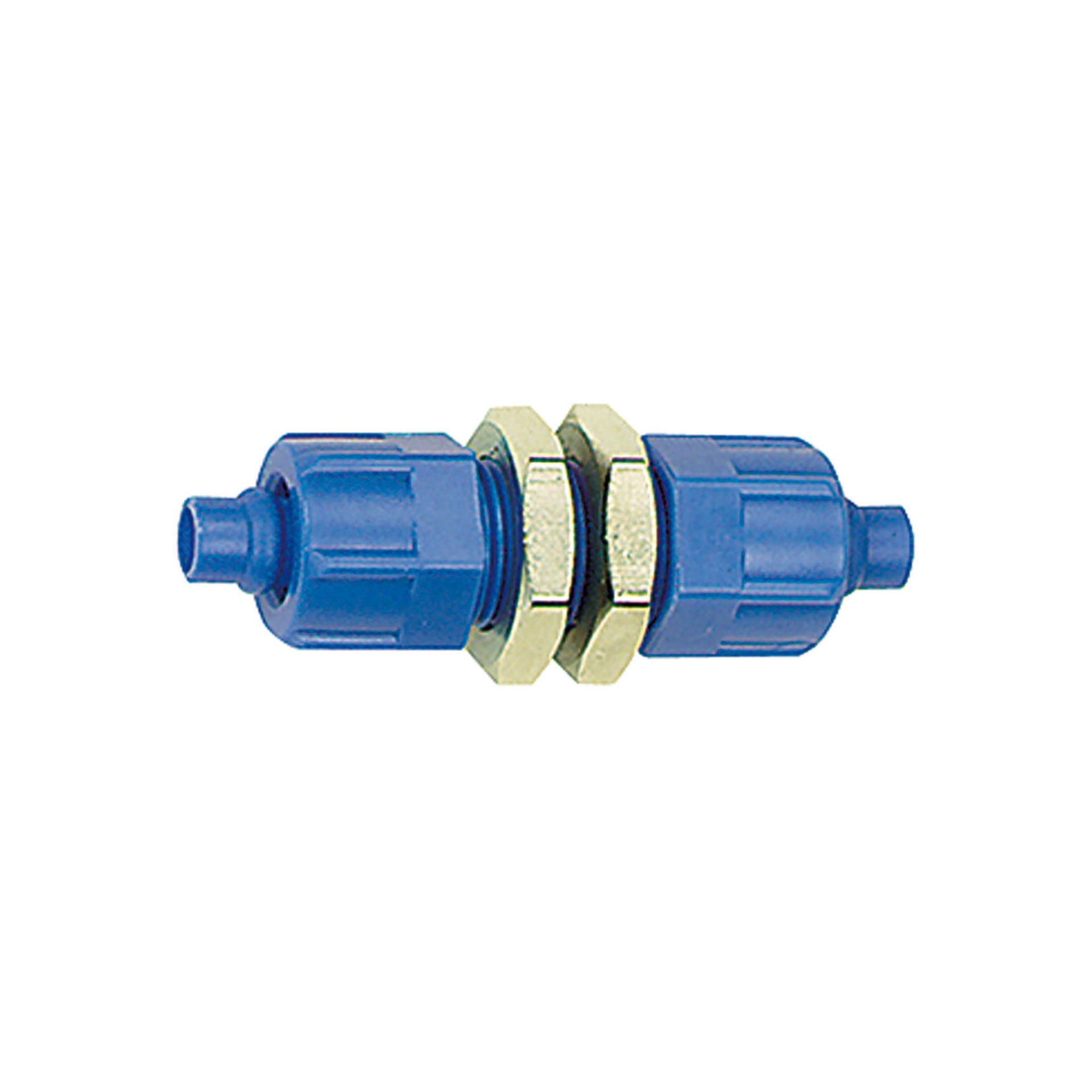

![[110750] RIEGLER Bulkhead connector with mounting nuts, M10x1, for hose 6/4, POM](/web/image/product.template/181680/image_128/%5B110750%5D%20RIEGLER%20Bulkhead%20connector%20with%20mounting%20nuts%2C%20M10x1%2C%20for%20hose%206-4%2C%20POM?unique=64b5e1a)
|
