RIEGLER Straight bulkhead connector, M18x1.5, for hose 9/12 mm, AF 24, PA
Type number: 140.34
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight bulkhead connection for pneumatic installation, M18x1.5 - type 140.34
The RIEGLER straight bulkhead connector, M18x1.5, for hose 9/12 mm, SW 24, PA connects compressed air hoses and pipes quickly and securely by simply screwing them in. Connection thread M18x1.5 - suitable for common industry standards. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| Thread | M18x1.5 |
| SW | 24 mm |
| for hose | 9/12 mm |
| L1 | 84 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110840] RIEGLER Straight bulkhead connector, M10x1, for hose 4/6 mm, AF 14, PA](/web/image/product.template/181770/image_128/%5B110840%5D%20RIEGLER%20Straight%20bulkhead%20connector%2C%20M10x1%2C%20for%20hose%204-6%20mm%2C%20AF%2014%2C%20PA?unique=a7e33cc)
|
Type number: 140.31 |
1.99 € | |
![[110841] RIEGLER Straight bulkhead connector, M14x1.5, for hose 6/8 mm, AF 19, PA](/web/image/product.template/181771/image_128/%5B110841%5D%20RIEGLER%20Straight%20bulkhead%20connector%2C%20M14x1.5%2C%20for%20hose%206-8%20mm%2C%20AF%2019%2C%20PA?unique=af075bb)
|
Type number: 140.32 |
3.00 € | |

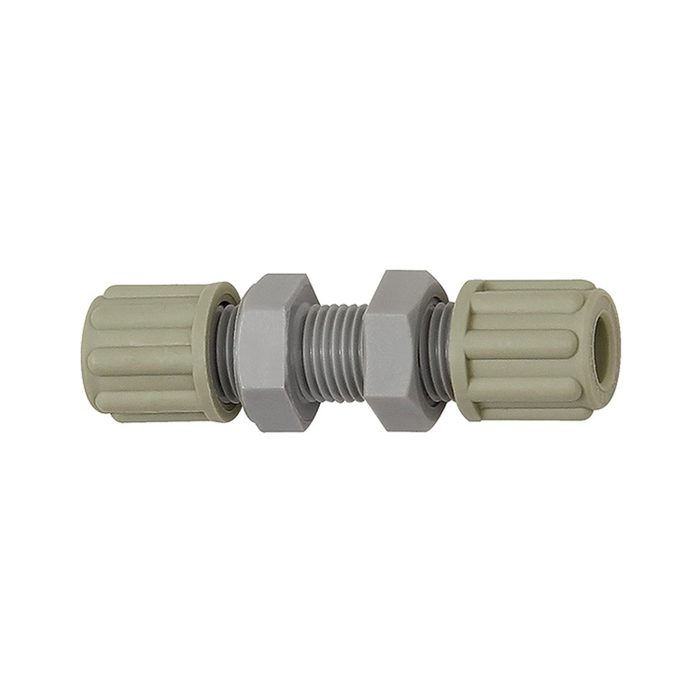

![[110842] RIEGLER Straight bulkhead connector, M16x1.5, for hose 8/10 mm, AF 22, PA](/web/image/product.template/181772/image_128/%5B110842%5D%20RIEGLER%20Straight%20bulkhead%20connector%2C%20M16x1.5%2C%20for%20hose%208-10%20mm%2C%20AF%2022%2C%20PA?unique=972575f)
|
