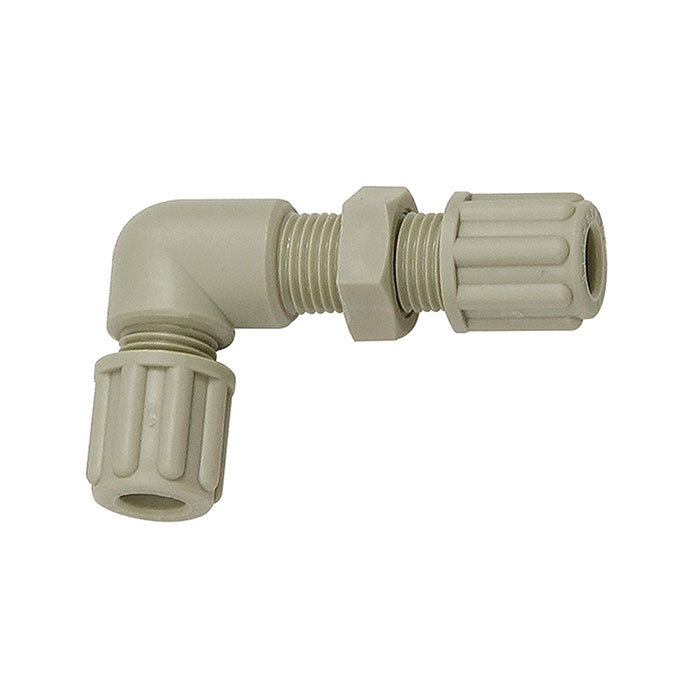

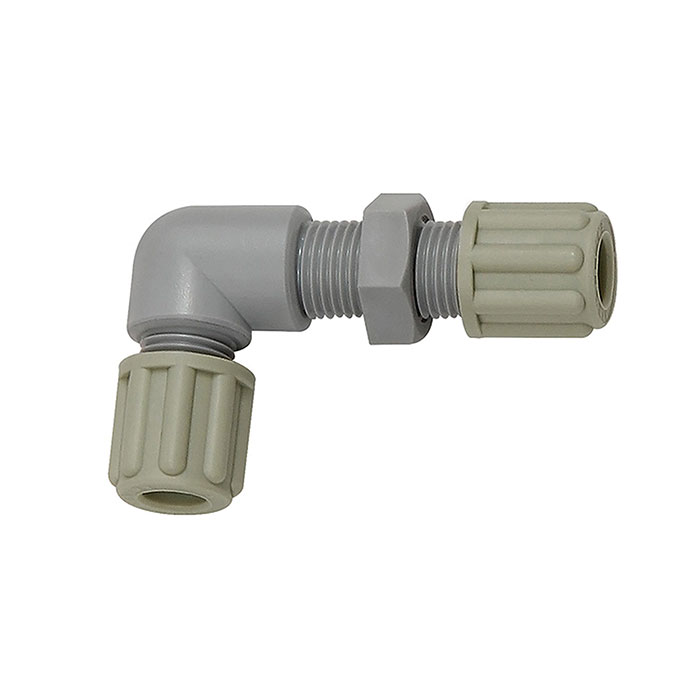

RIEGLER Angled bulkhead connector, M14x1.5, for hose 6/8 mm, AF 19, PA
Type number: 140.42
EAN: 4047322027700
Angled bulkhead connection, M14x1.5, for hose 6/8 mm, SW 19, working pressure max. 10 bar (20 °C) / max. 1 bar (60 °C), PA
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| Thread | M14x1.5 |
| SW | 19 mm |
| for hose | 6/8 mm |
| L1 | 53 mm |
| L2 | 33 mm |
| Class name | FLEX |
