RIEGLER Knurled nut, M14x1.5, for hose 6/8 mm, PFA
Type number: 160.02.603
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Knurled nut made of perfluoroalkoxy (PFA), for pneumatic installation, M14x1.5 - Type 160.02.603
The RIEGLER knurled nut, M14x1.5, for hose 6/8 mm, PFA connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of perfluoroalkoxy (PFA). The operating temperature is between 0 °C and 200 °C. Connection thread M14x1.5 - suitable for common industry standards. Simple assembly and disassembly for flexible cable routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Material | Perfluoroalkoxy (PFA) |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 200 °C |
| Max. operating pressure at 20 °C | 10 bar |
| Operating pressure max. from 170 °C | 1 bar |
| Thread | M14x1.5 |
| for hose | 6/8 mm |
| L1 | 17 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110937] RIEGLER Knurled nut, M10x1, for hose 4/6 mm, PFA](/web/image/product.template/181867/image_128/%5B110937%5D%20RIEGLER%20Knurled%20nut%2C%20M10x1%2C%20for%20hose%204-6%20mm%2C%20PFA?unique=ec6bc61)
|
Type number: 160.01.603 |
3.49 € | |
![[110939] RIEGLER Knurled nut, M16x1.5, for hose 8/10 mm, PFA](/web/image/product.template/181869/image_128/%5B110939%5D%20RIEGLER%20Knurled%20nut%2C%20M16x1.5%2C%20for%20hose%208-10%20mm%2C%20PFA?unique=b2e3b4e)
|
Type number: 160.03.603 |
5.52 € | |

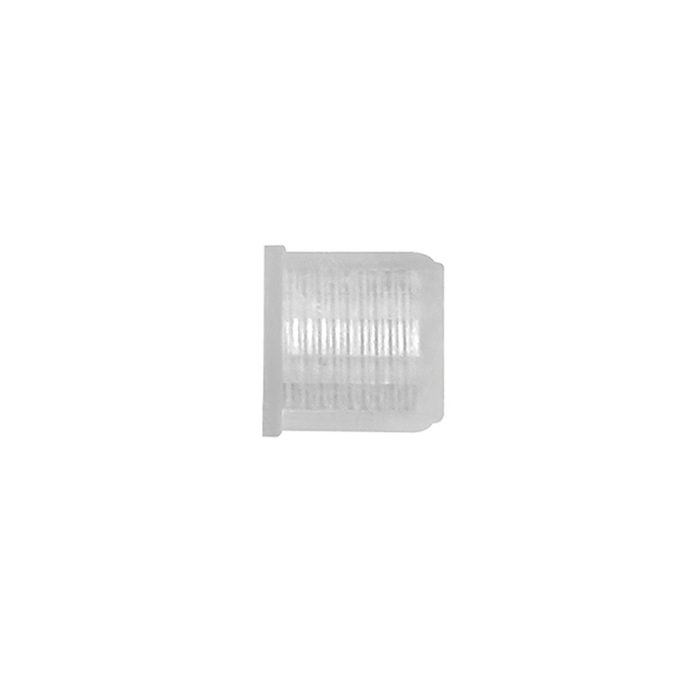

![[110940] RIEGLER Knurled nut, M18x1.5, for hose 9/12 mm, PFA](/web/image/product.template/181870/image_128/%5B110940%5D%20RIEGLER%20Knurled%20nut%2C%20M18x1.5%2C%20for%20hose%209-12%20mm%2C%20PFA?unique=c5bc5bb)
|
Type number: 160.04.603 |
6.01 € | |
