RIEGLER Cutting / seal ring for hose 8/10 mm, PEEK/PTFE
Type number: 170.03.603
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Cutting/sealing ring made of perfluoroalkoxy (PFA), for pneumatic installation - type 170.03.603
The RIEGLER cutting/sealing ring, for hose 8/10 mm, PEEK/PTFE connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of perfluoroalkoxy (PFA). The operating temperature is between 0 °C and 200 °C. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Material | Perfluoroalkoxy (PFA) |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 200 °C |
| Max. operating pressure at 20 °C | 10 bar |
| Operating pressure max. from 170 °C | 1 bar |
| for hose | 8/10 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110941] RIEGLER Cutting / seal ring, for hose 4/6 mm, PEEK/PTFE](/web/image/product.template/181871/image_128/%5B110941%5D%20RIEGLER%20Cutting%20-%20seal%20ring%2C%20for%20hose%204-6%20mm%2C%20PEEK-PTFE?unique=4149346)
|
Type number: 170.01.603 |
3.58 € | |
![[110942] RIEGLER Cutting / seal ring, for hose 6/8 mm, PEEK/PTFE](/web/image/product.template/181872/image_128/%5B110942%5D%20RIEGLER%20Cutting%20-%20seal%20ring%2C%20for%20hose%206-8%20mm%2C%20PEEK-PTFE?unique=f0657de)
|
Type number: 170.02.603 |
4.13 € | |

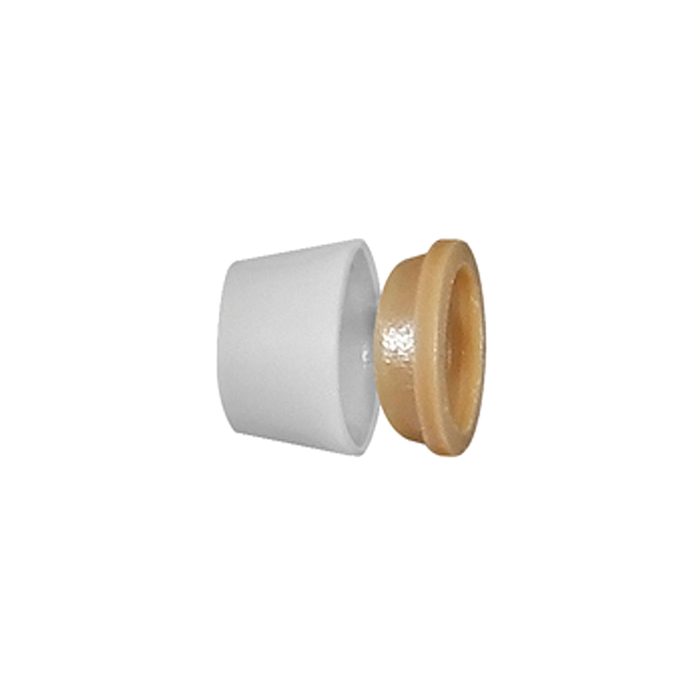

![[110944] RIEGLER Cutting / seal ring for hose 9/12 mm, PEEK/PTFE](/web/image/product.template/181874/image_128/%5B110944%5D%20RIEGLER%20Cutting%20-%20seal%20ring%20for%20hose%209-12%20mm%2C%20PEEK-PTFE?unique=26eca8d)
|
Type number: 170.04.603 |
5.77 € | |
