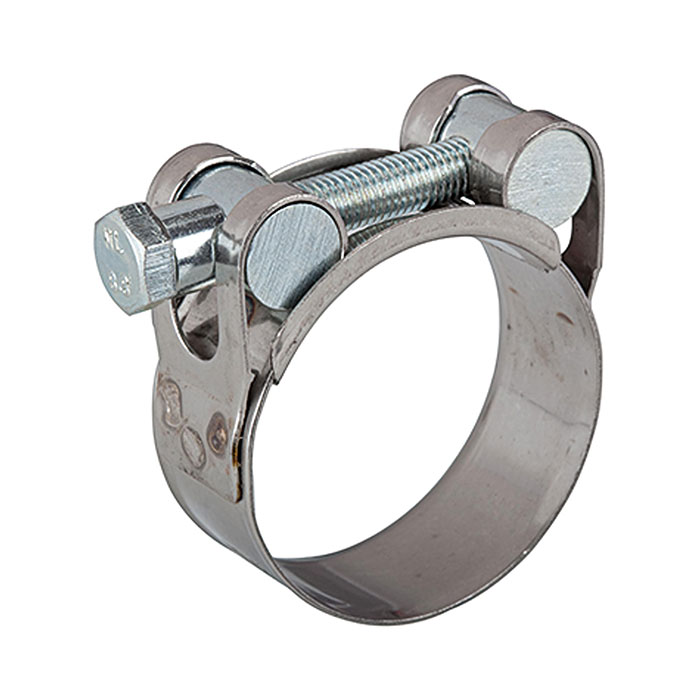

RIEGLER Hinge pin clamp, Chrome steel 1.4016 (W2), 68.0 - 73.0 mm
Type number: 6202.6873
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hinge pin clamp made of chrome steel 1.4016, for compressed air distribution - Type 6202.6873
The RIEGLER hinge bolt clamp, chrome steel 1.4016 (W2), 68 - 73 mm, 25 mm secures hoses reliably on grommets and nozzles. The housing is made of chrome steel 1.4016. Secure fixing prevents slipping under pressure.
Field of application
Typical areas of application: Hose fastening in compressed air and water systems.
| Housing | Chrome steel 1.4016 |
| Steel strap | Chrome steel 1.4016 |
| Screw | Galvanized steel |
| Bolt | Galvanized steel |
| Clamping range min. | 68 mm |
| Clamping range max. | 73 mm |
| Bandwidth | 25 mm |
| recomm. Tightening torque | 20 Nm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

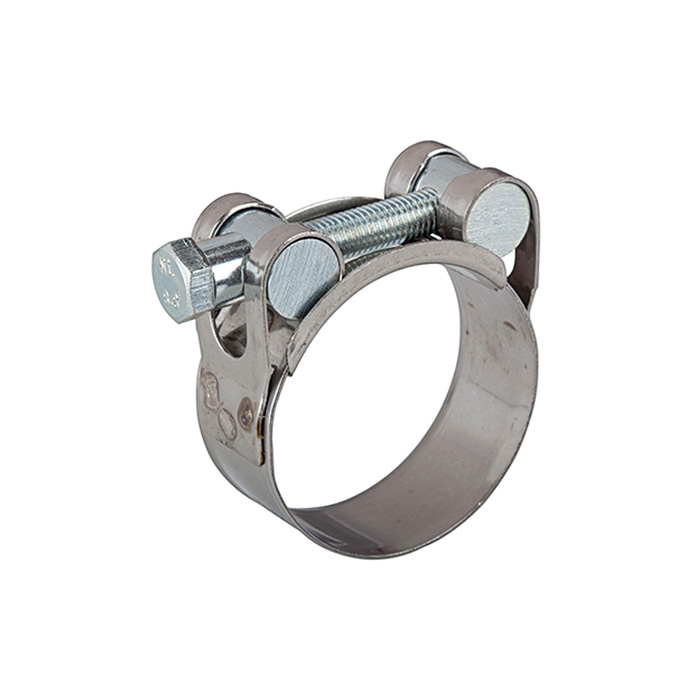

![[194291] RIEGLER Hinge pin clamp, chrome steel 1.4016 (W2), 68 - 73 mm, 24 mm](/web/image/product.template/276015/image_128/%5B194291%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20chrome%20steel%201.4016%20%28W2%29%2C%2068%20-%2073%20mm%2C%2024%20mm?unique=a5c7b22)
|
