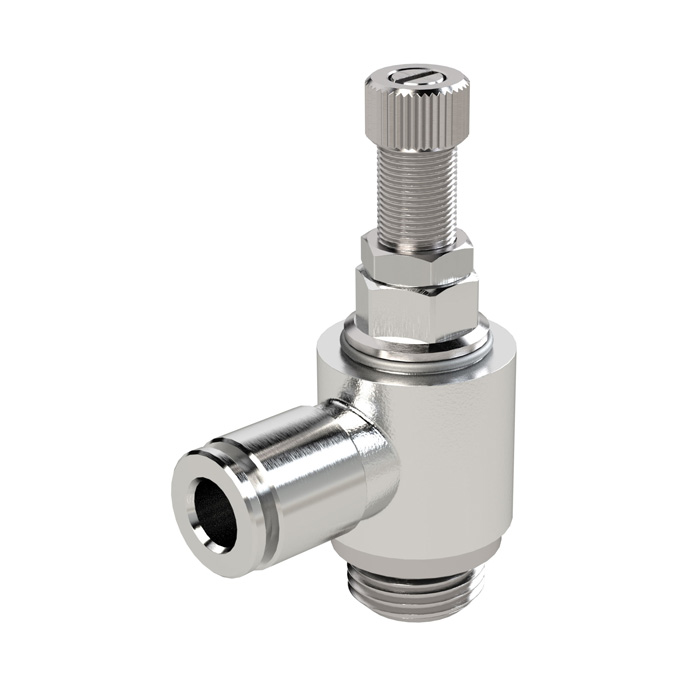

Throttle check valve, supply air, G 1/4, push-in connector 10
Typennummer: REDMRP112114ES4408
EAN: 4047322716185
Throttle check valve, supply air (V), knurled screw, G 1/4, push-in connector 10, rotatable, 0 - 10 bar, -20 °C to 80 °C, MS nickel-plated.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Base body | Nickel-plated brass |
| Silicone-free | Yes |
| Thread | G 1/4 |
| SW | 10 mm |
| Function | Supply air throttling (V) |
| for hose | 10 mm |
| Connection type | Connection Plug connection |
| B | 50.8 mm |
| C | 27 mm |
| Execution | adjustable with knurled screw |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | ba02f3dc-891c-4d65-8986-70091b7d3a6a |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, CW617N |
| Class name | PLUS |
| Construction method | rotatable |
| Stand Material Compliance | 45153 |
