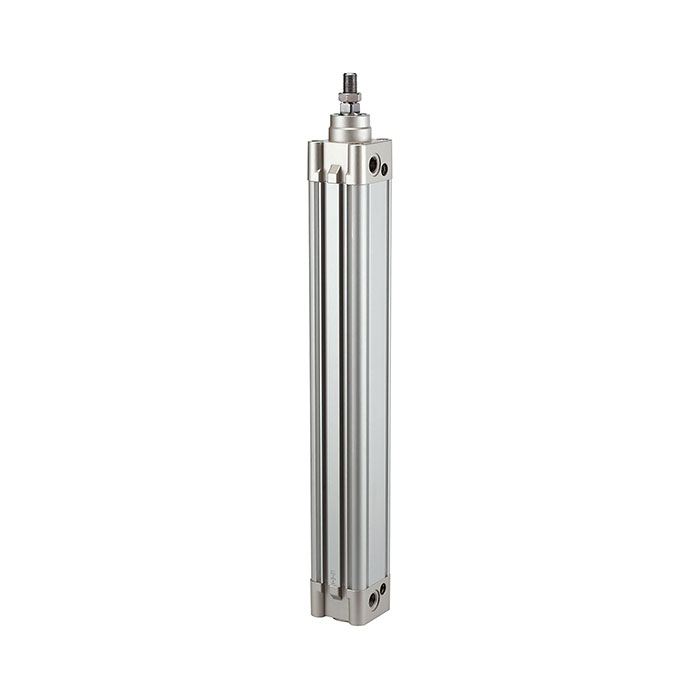

RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 150, G 1/2
Type number: 10.DMD.125150
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard cylinder »SE« ISO 15552, double-acting, Piston Ø 125, Stroke 150, G 1/2, Working pressure 1 - 10 bar, Temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR (O-rings) |
| Series | SE series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum profile tube with integrated T-slots |
| Piston rod seal | TPU (thermoplastic polyurethane) |
| Piston seal | TPU (thermoplastic polyurethane) |
| Piston Ø | 125 mm |
| Function | double-acting |
| Stroke | 150 mm |
| Piston rods AG | M27x2 |
| Piston rod Ø | 32 mm |
| Connection | G 1/2 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
