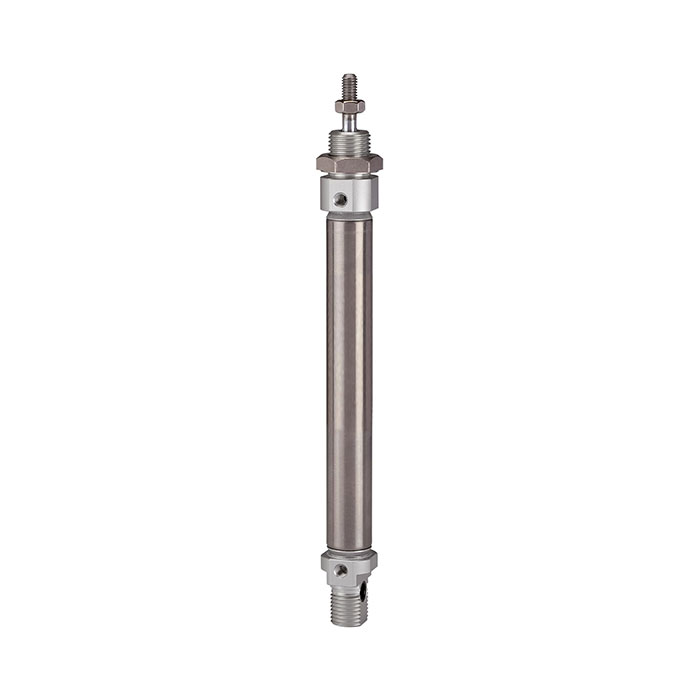

RIEGLER Round cylinder »MI« double-acting, Piston Ø 16, Stroke 75, M5x0.8

https://www.filcom-technik.de/web/image/product.template/198395/image_1920?unique=e9abf5f

Type number: 11.DM.16075

36.00 € 36.0 EUR 36.00 € VAT Included

45.38 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

114825

EAN :

4047322314145

Category :

Round Cylinders

Weight :

0.15 kg

Round cylinder "MI" ISO 6432, double-act. Solenoid, piston Ø 16, stroke 75, connection M5x0.8, working pressure 1-10 bar, temp. -20°C to 70°C

Temperature range min. -20 °C
Temperature range max. 70 °C
Sealing material NBR
Series Series MI
Working pressure min. 1 bar
Working pressure max. 10 bar
Pipe Stainless steel 1.4301
Type Type CA
Piston Ø 16 mm
Function double-acting
Stroke 75 mm
Piston rods AG M6x1.0
Piston rod Ø 6 mm
Connection M5x0.8
Piston rod Stainless steel 1.4301
Piston Aluminum
Class name EASY
Magnet with magnet
Standard according to ISO 6432
Damping without adjustable damping
Thread piston rod External thread on the piston rod
