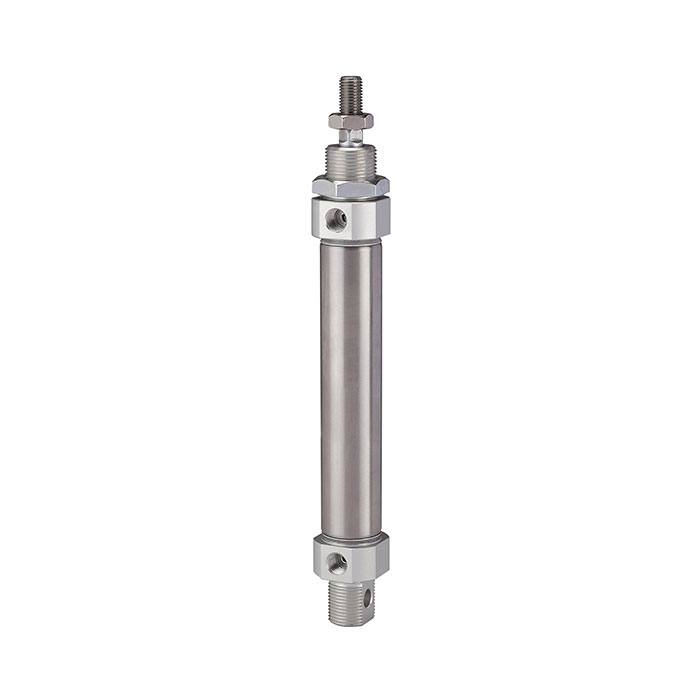

RIEGLER Round cylinder »MI« double-acting, Piston Ø 20, Stroke 450, G 1/8
Type number: 11.DM.20450
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Round cylinder "MI" ISO 6432, double-act. Solenoid, piston Ø 20, stroke 450, connection G 1/8, working pressure 1-10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Series MI |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Type CA |
| Piston Ø | 20 mm |
| Function | double-acting |
| Stroke | 450 mm |
| Piston rods AG | M8x1.25 |
| Piston rod Ø | 8 mm |
| Connection | G 1/8 |
| Piston rod | Stainless steel 1.4301 |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 6432 |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
