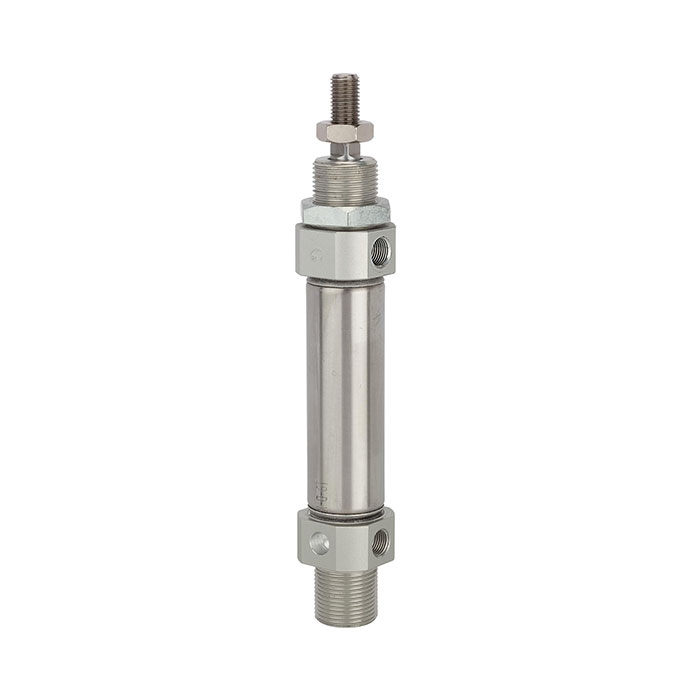

RIEGLER Round cylinder »MI«, double-acting, PistonØ 40, Stroke 400, G 1/4
Type number: 11.DM.40400
EAN: 4047322315173
Round cylinder "MI", double-acting, solenoid, piston Ø 40, stroke 400, connection G 1/4, working pressure 1 - 10 bar, temp. -20 °C to 70 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Series MI |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Type CM |
| Piston Ø | 40 mm |
| Function | double-acting |
| Stroke | 400 mm |
| Piston rods AG | M12x1.25 |
| Piston rod Ø | 16 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| Piston rod | Stainless steel 1.4301 |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
