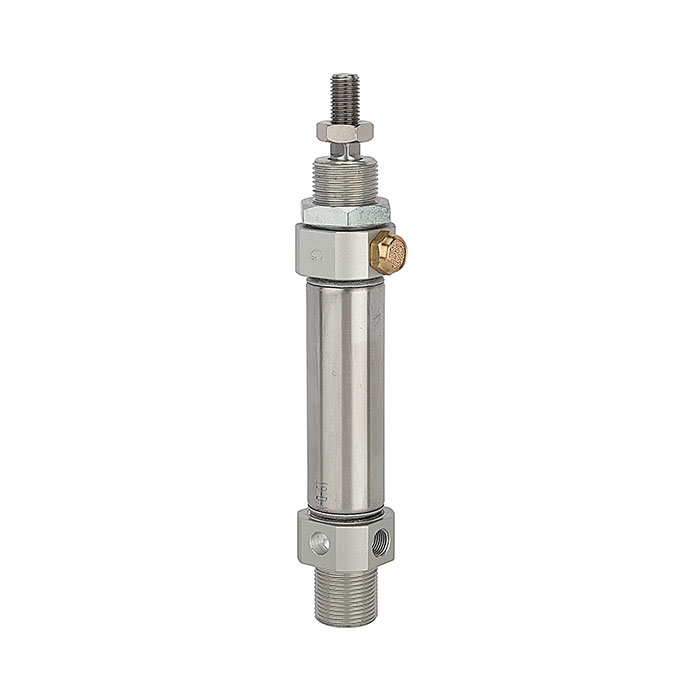

RIEGLER Round cylinder »MSI« single-acting, PistonØ 32, Stroke 125, G 1/8
Type number: 11.EM.32125
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Round cylinder "MSI", single-acting, solenoid, piston Ø 32, stroke 125, connection G 1/8, working pressure 2 - 10 bar, temp. -20 °C to 70 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | MSI series |
| Working pressure min. | 2 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Type CM |
| Piston Ø | 32 mm |
| Function | single-acting |
| Stroke | 125 mm |
| Piston rods AG | M10x1.25 |
| Piston rod Ø | 12 mm |
| Connection | G 1/8 |
| Piston rod | Stainless steel 1.4301 |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[114995] RIEGLER Round cylinder »MSI« single-acting, PistonØ 32, Stroke 100, G 1/8](/web/image/product.template/198565/image_128/%5B114995%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20100%2C%20G%201-8?unique=4248df6)
|
Type number: 11.EM.32100 |
83.29 € | |
![[114985] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 32, Stroke 10, G 1/8](/web/image/product.template/198555/image_128/%5B114985%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2010%2C%20G%201-8?unique=8a2e655)
|
Type number: 11.EM.32010 |
74.92 € | |
![[114997] RIEGLER Round cylinder »MSI« single-acting, PistonØ 32, Stroke 150, G 1/8](/web/image/product.template/198567/image_128/%5B114997%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2032%2C%20Stroke%20150%2C%20G%201-8?unique=8e9e326)
|
Type number: 11.EM.32150 |
88.26 € | |
![[114986] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 32, Stroke 15, G 1/8](/web/image/product.template/198556/image_128/%5B114986%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2015%2C%20G%201-8?unique=167968c)
|
Type number: 11.EM.32015 |
74.92 € | |
![[114987] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 32, Stroke 20, G 1/8](/web/image/product.template/198557/image_128/%5B114987%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2020%2C%20G%201-8?unique=930b8a8)
|
Type number: 11.EM.32020 |
74.92 € | |
![[114988] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 32, Stroke 25, G 1/8](/web/image/product.template/198558/image_128/%5B114988%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2025%2C%20G%201-8?unique=f569908)
|
Type number: 11.EM.32025 |
76.11 € | |
![[114989] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 32, Stroke 30, G 1/8](/web/image/product.template/198559/image_128/%5B114989%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2030%2C%20G%201-8?unique=d8f890c)
|
Type number: 11.EM.32030 |
76.78 € | |
![[114990] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 32, Stroke 40, G 1/8](/web/image/product.template/198560/image_128/%5B114990%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2040%2C%20G%201-8?unique=ebd9240)
|
Type number: 11.EM.32040 |
77.43 € | |
![[114991] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 32, Stroke 50, G 1/8](/web/image/product.template/198561/image_128/%5B114991%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2050%2C%20G%201-8?unique=442ab10)
|
Type number: 11.EM.32050 |
78.06 € | |
![[114992] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 32, Stroke 60, G 1/8](/web/image/product.template/198562/image_128/%5B114992%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2060%2C%20G%201-8?unique=8c50e44)
|
Type number: 11.EM.32060 |
78.72 € | |
![[114993] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 32, Stroke 75, G 1/8](/web/image/product.template/198563/image_128/%5B114993%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2075%2C%20G%201-8?unique=5db7263)
|
Type number: 11.EM.32075 |
79.36 € | |
![[114994] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 32, Stroke 80, G 1/8](/web/image/product.template/198564/image_128/%5B114994%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2080%2C%20G%201-8?unique=322f587)
|
Type number: 11.EM.32080 |
80.24 € | |
![[115008] RIEGLER Round cylinder »MSI« single-acting, PistonØ 40, Stroke 100, G 1/4](/web/image/product.template/198578/image_128/%5B115008%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20100%2C%20G%201-4?unique=6a1bdb6)
|
Type number: 11.EM.40100 |
104.96 € | |
![[114998] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 40, Stroke 10, G 1/4](/web/image/product.template/198568/image_128/%5B114998%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2010%2C%20G%201-4?unique=ce29f6e)
|
Type number: 11.EM.40010 |
88.69 € | |
![[115009] RIEGLER Round cylinder »MSI« single-acting, PistonØ 40, Stroke 125, G 1/4](/web/image/product.template/198579/image_128/%5B115009%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20125%2C%20G%201-4?unique=d020d1c)
|
Type number: 11.EM.40125 |
107.78 € | |
![[115010] RIEGLER Round cylinder »MSI« single-acting, PistonØ 40, Stroke 150, G 1/4](/web/image/product.template/198580/image_128/%5B115010%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%C3%98%2040%2C%20Stroke%20150%2C%20G%201-4?unique=0b0e9a7)
|
Type number: 11.EM.40150 |
112.99 € | |
![[114999] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 40, Stroke 15, G 1/4](/web/image/product.template/198569/image_128/%5B114999%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2015%2C%20G%201-4?unique=07cc036)
|
Type number: 11.EM.40015 |
88.69 € | |
![[115000] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 40, Stroke 20, G 1/4](/web/image/product.template/198570/image_128/%5B115000%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2020%2C%20G%201-4?unique=1ff17ed)
|
Type number: 11.EM.40020 |
88.69 € | |
![[115001] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 40, Stroke 25, G 1/4](/web/image/product.template/198571/image_128/%5B115001%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2025%2C%20G%201-4?unique=e875efc)
|
Type number: 11.EM.40025 |
89.67 € | |
![[115002] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 40, Stroke 30, G 1/4](/web/image/product.template/198572/image_128/%5B115002%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2030%2C%20G%201-4?unique=94af206)
|
Type number: 11.EM.40030 |
94.77 € | |
![[115003] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 40, Stroke 40, G 1/4](/web/image/product.template/198573/image_128/%5B115003%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2040%2C%20G%201-4?unique=9409462)
|
Type number: 11.EM.40040 |
94.77 € | |
![[115004] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 40, Stroke 50, G 1/4](/web/image/product.template/198574/image_128/%5B115004%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2050%2C%20G%201-4?unique=88b2b30)
|
Type number: 11.EM.40050 |
94.77 € | |
![[115005] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 40, Stroke 60, G 1/4](/web/image/product.template/198575/image_128/%5B115005%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2060%2C%20G%201-4?unique=d8d75ab)
|
Type number: 11.EM.40060 |
99.76 € | |
![[115006] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 40, Stroke 75, G 1/4](/web/image/product.template/198576/image_128/%5B115006%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2075%2C%20G%201-4?unique=9232f29)
|
Type number: 11.EM.40075 |
99.76 € | |
![[115007] RIEGLER Round cylinder »MSI« single-acting, Piston Ø 40, Stroke 80, G 1/4](/web/image/product.template/198577/image_128/%5B115007%5D%20RIEGLER%20Round%20cylinder%20%C2%BBMSI%C2%AB%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2080%2C%20G%201-4?unique=7565bdf)
|
Type number: 11.EM.40080 |
104.96 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[115553] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 32](/web/image/product.template/200312/image_128/%5B115553%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2032?unique=df57181)
|
Type number: 235.316 |
10.94 € | |
![[115561] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 32](/web/image/product.template/200320/image_128/%5B115561%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2032?unique=f1df7a2)
|
Type number: 235.326 |
26.99 € | |
![[115569] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 32](/web/image/product.template/200328/image_128/%5B115569%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2032?unique=8122152)
|
Type number: 235.336 |
23.32 € | |
![[115577] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 32](/web/image/product.template/200336/image_128/%5B115577%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2032?unique=d0bd9aa)
|
Type number: 235.346 |
26.99 € | |
![[115585] RIEGLER Sensor »CS1« for round cylinder series »MI« / »MSI«, Piston Ø 32](/web/image/product.template/200344/image_128/%5B115585%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20round%20cylinder%20series%20%C2%BBMI%C2%AB%20-%20%C2%BBMSI%C2%AB%2C%20Piston%20%C3%98%2032?unique=cb1132b)
|
Type number: 235.356 |
23.32 € | |
![[115807] RIEGLER Foot fastening »LB« for round cylinder, for piston Ø 32](/web/image/product.template/200542/image_128/%5B115807%5D%20RIEGLER%20Foot%20fastening%20%C2%BBLB%C2%AB%20for%20round%20cylinder%2C%20for%20piston%20%C3%98%2032?unique=40afbe8)
|
Type number: 437.203 |
5.09 € | |
![[115814] RIEGLER Joint head »UNIT«, Piston rod thread M10x1.25](/web/image/product.template/200548/image_128/%5B115814%5D%20RIEGLER%20Joint%20head%20%C2%BBUNIT%C2%AB%2C%20Piston%20rod%20thread%20M10x1.25?unique=0e88ed0)
|
Type number: 437.220 |
6.39 € | |
![[115822] RIEGLER Pivoting head fastening »TC« for round cylinder, for piston Ø 32](/web/image/product.template/200556/image_128/%5B115822%5D%20RIEGLER%20Pivoting%20head%20fastening%20%C2%BBTC%C2%AB%20for%20round%20cylinder%2C%20for%20piston%20%C3%98%2032?unique=45270e3)
|
Type number: 437.233 |
8.84 € | |
![[115830] RIEGLER Pivoting bearing, »SDB« for round cylinder, for piston Ø 32](/web/image/product.template/200563/image_128/%5B115830%5D%20RIEGLER%20Pivoting%20bearing%2C%20%C2%BBSDB%C2%AB%20for%20round%20cylinder%2C%20for%20piston%20%C3%98%2032?unique=079a00e)
|
Type number: 437.253 |
4.22 € | |
![[115835] RIEGLER Fork head, »Y«, Piston rod thread M10x1.25](/web/image/product.template/200568/image_128/%5B115835%5D%20RIEGLER%20Fork%20head%2C%20%C2%BBY%C2%AB%2C%20Piston%20rod%20thread%20M10x1.25?unique=46ea1fb)
|
Type number: 437.313 |
6.18 € | |
![[116951] RIEGLER Sensor »CS1« Rundzyl.»MI«/»MSI«, Kolben-Ø32, REED, 2-Draht,M8,NO](/web/image/product.template/267806/image_128/%5B116951%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20Rundzyl.%C2%BBMI%C2%AB-%C2%BBMSI%C2%AB%2C%20Kolben-%C3%9832%2C%20REED%2C%202-Draht%2CM8%2CNO?unique=eafd579)
|
Type number: 235.306-1 |
13.33 € | |
![[118566] RIEGLER Sensor holder, piston Ø 32, for sensor type CS1, stainless steel](/web/image/product.template/275023/image_128/%5B118566%5D%20RIEGLER%20Sensor%20holder%2C%20piston%20%C3%98%2032%2C%20for%20sensor%20type%20CS1%2C%20stainless%20steel?unique=58c7ab6)
|
Type number: 235.32SH |
3.01 € | |
