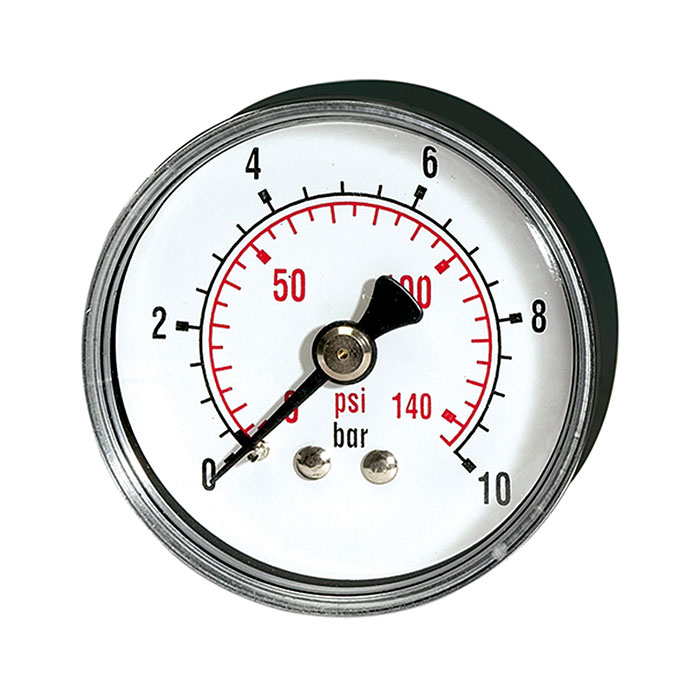

RIEGLER Standard pressure gauge »pressure line« G 1/8, 0 - 10 bar/145 psi
Type number: 110.46-KDE
EAN: 4047322175760
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard mano. "pressure line", plastic housing, connection rear center, G 1/8, grade 2.5, measuring range 0 - 10.0 bar/145 psi, Ø 40
| Housing | Plastic |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | Plastic |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 10 |
| Diameter | 40 mm |
| Graduation value in the bar range | 0.5 bar |
| Execution | Bourdon tube pressure gauge |
| Connection | G 1/8 |
| Quality class | 45414 |
| Lower / Upper measuring range limit | Overpressure |
| Connection position | rear, centric |
| Class name | EASY |
| Process connection material | Copper alloy |
