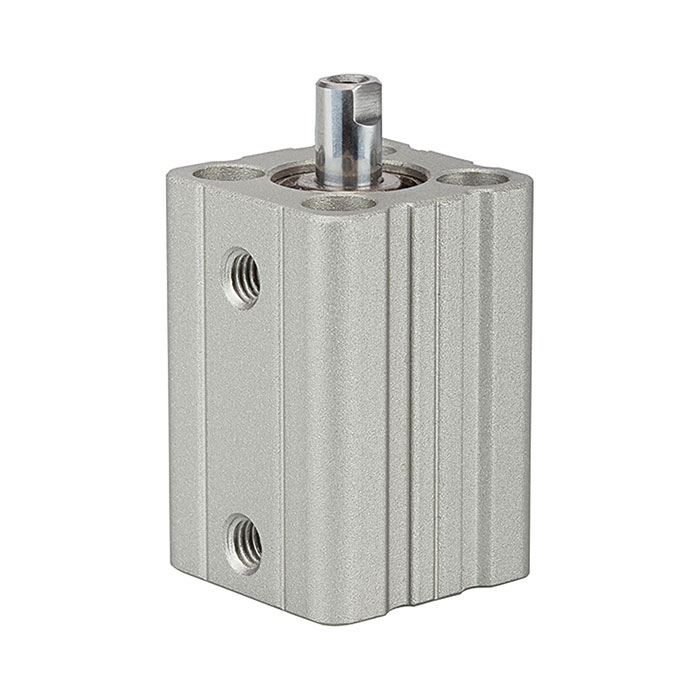

RIEGLER Short stroke cyl., double-acting, Piston Ø 16, Stroke 10, M5x0,8
Type number: 12.DMI.16010
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Short-stroke cylinder "ACQ" double-acting for automation technology, max. 10 bar, M5x0.8 - Type 12.DMI.16010
The RIEGLER short-stroke cylinder "ACQ" double-acting, piston Ø 16, stroke 10, M5x0.8 offers compact pneumatic drive solutions for confined installation spaces. with NBR seals. The operating pressure range is 1 bar to 10 bar. The temperature range is between -20 °C and 70 °C. Connection thread M5x0.8 - suitable for common industry standards. With piston Ø 16 mm, stroke 10 mm, hard chrome-plated steel piston rod - for powerful linear actuator solutions. Space-saving design for confined installation spaces.
Field of application
Typical areas of application: Compact systems, special machine construction and handling systems.
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ACQ series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 16 mm |
| Design | 1 |
| Function | double-acting |
| Stroke | 10 mm |
| Piston rod Ø | 8 mm |
| Piston rods IG | M4x0.7 |
| Connection | M5x0.8 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Brass |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
