RIEGLER Short stroke cyl., double-acting, Piston Ø 50, Stroke 20, G 1/4

Price:

66.62 €
    ​
English (US)
  2. Shop
  3. Pneumatic Cylinder
  4. RIEGLER Short stroke cyl., double-acting, Piston Ø 50, Stroke 20, G 1/4
RIEGLER Short stroke cyl., double-acting, Piston Ø 50, Stroke 10, G 1/4
RIEGLER Short stroke cyl., double-acting, Piston Ø 50, Stroke 10, G 1/4
65.69 €
65.69 €
RIEGLER Short stroke cyl., double-acting, Piston Ø 50, Stroke 25, G 1/4
RIEGLER Short stroke cyl., double-acting, Piston Ø 50, Stroke 25, G 1/4
85.74 €
85.74 €

RIEGLER Short stroke cyl., double-acting, Piston Ø 50, Stroke 20, G 1/4

https://www.filcom-technik.de/web/image/product.template/198673/image_1920?unique=d961d0d

Type number: 12.DMI.50020

EAN: 4047322318181

66.62 € 66.62 EUR 66.62 € VAT Included

86.12 € VAT Included

    This combination does not exist.

    from 110 € free shipping Details shipping costs
    Contact Us
    Product no. :
    115126
    Category :
    Short-Stroke Cylinders
    Weight :
    0.59 kg

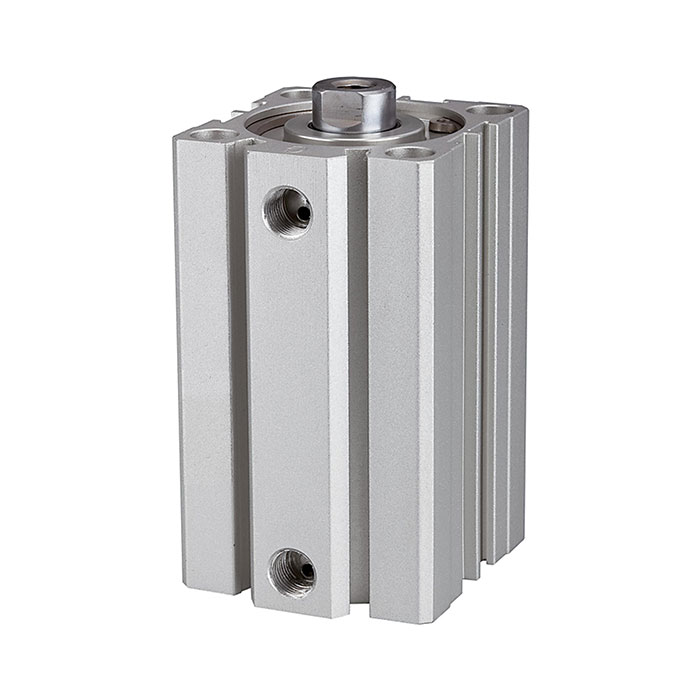

    Short-stroke cylinder "ACQ" double-acting, solenoid, internal thread, piston Ø 50, stroke 20, connection G 1/4, working pressure 1-10 bar, temp. -20°C to 70°C

    Temperature range min. -20 °C
    Temperature range max. 70 °C
    Sealing material NBR
    Series ACQ series
    Working pressure min. 1 bar
    Working pressure max. 10 bar
    Pipe Aluminum
    Piston Ø 50 mm
    Design 3
    Function double-acting
    Stroke 20 mm
    Piston rod Ø 20 mm
    Piston rods IG M10x1.5
    Connection G 1/4
    Piston rod Stahl, hartverchromt
    Piston Aluminium
    Class name EASY
    Magnet with magnet
    Damping without adjustable damping
    Thread piston rod Internal thread on the piston rod
