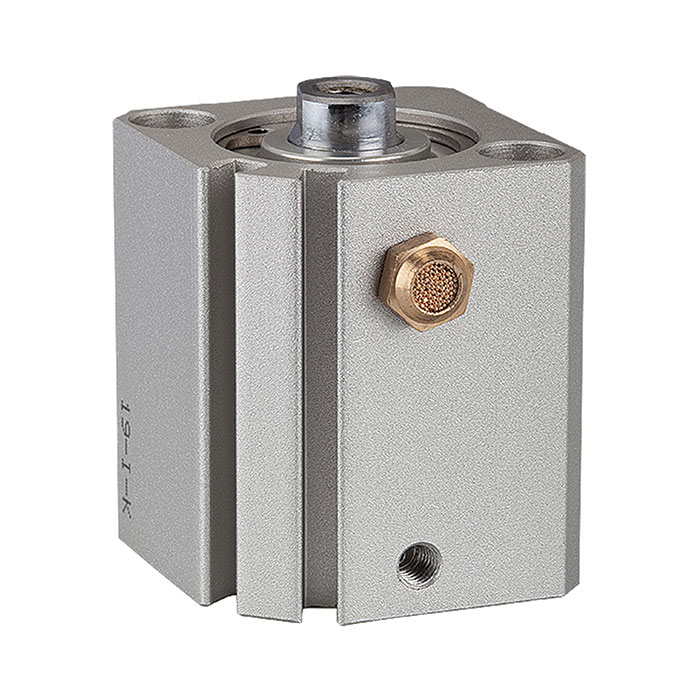

RIEGLER Short stroke cyl., single-acting, Piston Ø 25, Stroke 5, M5x0,8
Type number: 12.EM.25005
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Short stroke cylinder »ASQ« single-acting, Magnet, Piston Ø 25, Stroke 5, M5x0,8, Working pressure 2-10 bar, Temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ASQ series |
| Working pressure min. | 2 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 25 mm |
| Design | 5 |
| Function | single-acting |
| Stroke | 5 mm |
| Piston rod Ø | 12 mm |
| Piston rods IG | M6x1.0 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | M5x0.8 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[115167] RIEGLER Short stroke cyl., single-acting, Piston Ø 12, Stroke 10, M5x0,8](/web/image/product.template/198714/image_128/%5B115167%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%2010%2C%20M5x0%2C8?unique=c89ca46)
|
Type number: 12.EM.12010 |
42.40 € | |
![[115168] RIEGLER Short stroke cyl., single-acting, Piston Ø 12, Stroke 15, M5x0,8](/web/image/product.template/198715/image_128/%5B115168%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%2015%2C%20M5x0%2C8?unique=6583103)
|
Type number: 12.EM.12015 |
42.83 € | |
![[115169] RIEGLER Short stroke cyl., single-acting, Piston Ø 12, Stroke 20, M5x0,8](/web/image/product.template/198716/image_128/%5B115169%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%2020%2C%20M5x0%2C8?unique=a4b8795)
|
Type number: 12.EM.12020 |
43.27 € | |
![[115166] RIEGLER Short stroke cyl., single-acting, Piston Ø 12, Stroke 5, M5x0,8](/web/image/product.template/198713/image_128/%5B115166%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%205%2C%20M5x0%2C8?unique=2063552)
|
Type number: 12.EM.12005 |
41.97 € | |
![[115171] RIEGLER Short stroke cyl., single-acting, Piston Ø 16, Stroke 10, M5x0,8](/web/image/product.template/198718/image_128/%5B115171%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%2010%2C%20M5x0%2C8?unique=3989da8)
|
Type number: 12.EM.16010 |
44.03 € | |
![[115172] RIEGLER Short stroke cyl., single-acting, Piston Ø 16, Stroke 15, M5x0,8](/web/image/product.template/198719/image_128/%5B115172%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%2015%2C%20M5x0%2C8?unique=42f5958)
|
Type number: 12.EM.16015 |
44.47 € | |
![[115173] RIEGLER Short stroke cyl., single-acting, Piston Ø 16, Stroke 20, M5x0,8](/web/image/product.template/198720/image_128/%5B115173%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%2020%2C%20M5x0%2C8?unique=5d1fe83)
|
Type number: 12.EM.16020 |
44.90 € | |
![[115170] RIEGLER Short stroke cyl., single-acting, Piston Ø 16, Stroke 5, M5x0,8](/web/image/product.template/198717/image_128/%5B115170%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%205%2C%20M5x0%2C8?unique=ab1ace0)
|
Type number: 12.EM.16005 |
43.70 € | |
![[115175] RIEGLER Short stroke cyl., single-acting, Piston Ø 20, Stroke 10, M5x0,8](/web/image/product.template/198722/image_128/%5B115175%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2C%20M5x0%2C8?unique=1b2732b)
|
Type number: 12.EM.20010 |
45.77 € | |
![[115176] RIEGLER Short stroke cyl., single-acting, Piston Ø 20, Stroke 15, M5x0,8](/web/image/product.template/198723/image_128/%5B115176%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2015%2C%20M5x0%2C8?unique=c113f6f)
|
Type number: 12.EM.20015 |
46.21 € | |
![[115177] RIEGLER Short stroke cyl., single-acting, Piston Ø 20, Stroke 20, M5x0,8](/web/image/product.template/198724/image_128/%5B115177%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2020%2C%20M5x0%2C8?unique=b5630ff)
|
Type number: 12.EM.20020 |
46.64 € | |
![[115178] RIEGLER Short stroke cyl., single-acting, Piston Ø 20, Stroke 25, M5x0,8](/web/image/product.template/198725/image_128/%5B115178%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2C%20M5x0%2C8?unique=30e38c3)
|
Type number: 12.EM.20025 |
47.08 € | |
![[115179] RIEGLER Short stroke cyl., single-acting, Piston Ø 20, Stroke 30, M5x0,8](/web/image/product.template/198726/image_128/%5B115179%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2030%2C%20M5x0%2C8?unique=bd20ad6)
|
Type number: 12.EM.20030 |
47.54 € | |
![[115174] RIEGLER Short stroke cyl., single-acting, Piston Ø 20, Stroke 5, M5x0,8](/web/image/product.template/198721/image_128/%5B115174%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%205%2C%20M5x0%2C8?unique=83e4212)
|
Type number: 12.EM.20005 |
45.35 € | |
![[115181] RIEGLER Short stroke cyl., single-acting, Piston Ø 25, Stroke 10, M5x0,8](/web/image/product.template/198728/image_128/%5B115181%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2010%2C%20M5x0%2C8?unique=8057332)
|
Type number: 12.EM.25010 |
48.40 € | |
![[115182] RIEGLER Short stroke cyl., single-acting, Piston Ø 25, Stroke 15, M5x0,8](/web/image/product.template/198729/image_128/%5B115182%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2015%2C%20M5x0%2C8?unique=d838aac)
|
Type number: 12.EM.25015 |
48.81 € | |
![[115183] RIEGLER Short stroke cyl., single-acting, Piston Ø 25, Stroke 20, M5x0,8](/web/image/product.template/198730/image_128/%5B115183%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2020%2C%20M5x0%2C8?unique=0561f52)
|
Type number: 12.EM.25020 |
49.25 € | |
![[115184] RIEGLER Short stroke cyl., single-acting, Piston Ø 25, Stroke 25, M5x0,8](/web/image/product.template/198731/image_128/%5B115184%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2025%2C%20M5x0%2C8?unique=66d8932)
|
Type number: 12.EM.25025 |
49.68 € | |
![[115185] RIEGLER Short stroke cyl., single-acting, Piston Ø 25, Stroke 30, M5x0,8](/web/image/product.template/198732/image_128/%5B115185%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2030%2C%20M5x0%2C8?unique=2e075df)
|
Type number: 12.EM.25030 |
50.13 € | |
![[115187] RIEGLER Short stroke cyl., single-acting, Piston Ø 32, Stroke 10, G 1/8](/web/image/product.template/198734/image_128/%5B115187%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2010%2C%20G%201-8?unique=c24b9e1)
|
Type number: 12.EM.32010 |
54.05 € | |
![[115188] RIEGLER Short stroke cyl., single-acting, Piston Ø 32, Stroke 15, G 1/8](/web/image/product.template/198735/image_128/%5B115188%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2015%2C%20G%201-8?unique=650d000)
|
Type number: 12.EM.32015 |
54.48 € | |
![[115189] RIEGLER Short stroke cyl., single-acting, Piston Ø 32, Stroke 20, G 1/8](/web/image/product.template/198736/image_128/%5B115189%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2020%2C%20G%201-8?unique=1daf815)
|
Type number: 12.EM.32020 |
54.93 € | |
![[115190] RIEGLER Short stroke cyl., single-acting, Piston Ø 32, Stroke 25, G 1/8](/web/image/product.template/198737/image_128/%5B115190%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2025%2C%20G%201-8?unique=5672f9d)
|
Type number: 12.EM.32025 |
55.36 € | |
![[115191] RIEGLER Short stroke cyl., single-acting, Piston Ø 32, Stroke 30, G 1/8](/web/image/product.template/198738/image_128/%5B115191%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2030%2C%20G%201-8?unique=c1d6837)
|
Type number: 12.EM.32030 |
55.79 € | |
![[115186] RIEGLER Short stroke cyl., single-acting, Piston Ø 32, Stroke 5, G 1/8](/web/image/product.template/198733/image_128/%5B115186%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%205%2C%20G%201-8?unique=4dc9a44)
|
Type number: 12.EM.32005 |
53.62 € | |
![[115193] RIEGLER Short stroke cyl., single-acting, Piston Ø 40, Stroke 10, G 1/8](/web/image/product.template/198740/image_128/%5B115193%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2010%2C%20G%201-8?unique=5473ef0)
|
Type number: 12.EM.40010 |
56.67 € | |
![[115194] RIEGLER Short stroke cyl., single-acting, Piston Ø 40, Stroke 15, G 1/8](/web/image/product.template/198741/image_128/%5B115194%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2015%2C%20G%201-8?unique=120f2af)
|
Type number: 12.EM.40015 |
57.11 € | |
![[115195] RIEGLER Short stroke cyl., single-acting, Piston Ø 40, Stroke 20, G 1/8](/web/image/product.template/198742/image_128/%5B115195%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2020%2C%20G%201-8?unique=030908a)
|
Type number: 12.EM.40020 |
57.55 € | |
![[115196] RIEGLER Short stroke cyl., single-acting, Piston Ø 40, Stroke 25, G 1/8](/web/image/product.template/198743/image_128/%5B115196%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2025%2C%20G%201-8?unique=d5872d9)
|
Type number: 12.EM.40025 |
57.98 € | |
![[115197] RIEGLER Short stroke cyl., single-acting, Piston Ø 40, Stroke 30, G 1/8](/web/image/product.template/198744/image_128/%5B115197%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2030%2C%20G%201-8?unique=2972a9e)
|
Type number: 12.EM.40030 |
58.41 € | |
![[115192] RIEGLER Short stroke cyl., single-acting, Piston Ø 40, Stroke 5, G 1/8](/web/image/product.template/198739/image_128/%5B115192%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%205%2C%20G%201-8?unique=5c18317)
|
Type number: 12.EM.40005 |
56.24 € | |
![[115199] RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 10, G 1/4](/web/image/product.template/198746/image_128/%5B115199%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2010%2C%20G%201-4?unique=a96a2b9)
|
Type number: 12.EM.50010 |
60.38 € | |
![[115200] RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 15, G 1/4](/web/image/product.template/198747/image_128/%5B115200%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2015%2C%20G%201-4?unique=458bceb)
|
Type number: 12.EM.50015 |
61.02 € | |
![[115201] RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 20, G 1/4](/web/image/product.template/198748/image_128/%5B115201%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2020%2C%20G%201-4?unique=b9aa576)
|
Type number: 12.EM.50020 |
61.68 € | |
![[115202] RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 25, G 1/4](/web/image/product.template/198749/image_128/%5B115202%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2025%2C%20G%201-4?unique=b9fc96b)
|
Type number: 12.EM.50025 |
62.33 € | |
![[115203] RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 30, G 1/4](/web/image/product.template/198750/image_128/%5B115203%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2030%2C%20G%201-4?unique=8eada1b)
|
Type number: 12.EM.50030 |
74.66 € | |
![[115198] RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 5, G 1/4](/web/image/product.template/198745/image_128/%5B115198%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%205%2C%20G%201-4?unique=4f95930)
|
Type number: 12.EM.50005 |
59.73 € | |
![[115205] RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 10, G 1/4](/web/image/product.template/198752/image_128/%5B115205%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2010%2C%20G%201-4?unique=4dd32c2)
|
Type number: 12.EM.63010 |
76.39 € | |
![[115206] RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 15, G 1/4](/web/image/product.template/198753/image_128/%5B115206%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2015%2C%20G%201-4?unique=a6fbff9)
|
Type number: 12.EM.63015 |
77.25 € | |
![[115207] RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 20, G 1/4](/web/image/product.template/198754/image_128/%5B115207%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2020%2C%20G%201-4?unique=b90d3ab)
|
Type number: 12.EM.63020 |
78.14 € | |
![[115208] RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 25, G 1/4](/web/image/product.template/198755/image_128/%5B115208%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2025%2C%20G%201-4?unique=88d0d8d)
|
Type number: 12.EM.63025 |
79.02 € | |
![[115209] RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 30, G 1/4](/web/image/product.template/198756/image_128/%5B115209%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2030%2C%20G%201-4?unique=3df426e)
|
Type number: 12.EM.63030 |
79.90 € | |
![[115204] RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 5, G 1/4](/web/image/product.template/198751/image_128/%5B115204%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%205%2C%20G%201-4?unique=42a9576)
|
Type number: 12.EM.63005 |
75.53 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[115528] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, REED sensor](/web/image/product.template/200287/image_128/%5B115528%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20REED%20sensor?unique=e6ce359)
|
Type number: 235.101 |
9.25 € | |
![[115529] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200288/image_128/%5B115529%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=6b511bd)
|
Type number: 235.102 |
21.25 € | |
![[115530] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200289/image_128/%5B115530%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=428d07c)
|
Type number: 235.103 |
18.86 € | |
![[115531] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200290/image_128/%5B115531%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=56dd870)
|
Type number: 235.104 |
21.25 € | |
![[115532] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200291/image_128/%5B115532%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=17c09e1)
|
Type number: 235.105 |
18.86 € | |
![[115747] RIEGLER Joint head »UNIT« for short stroke cylinder, Piston Ø 25](/web/image/product.template/200482/image_128/%5B115747%5D%20RIEGLER%20Joint%20head%20%C2%BBUNIT%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2025?unique=ed4e854)
|
Type number: 437.06D25CQ |
15.55 € | |
![[115869] RIEGLER Foot fastening »LB« for short stroke cylinder, Piston Ø 25](/web/image/product.template/200602/image_128/%5B115869%5D%20RIEGLER%20Foot%20fastening%20%C2%BBLB%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2025?unique=5df69c4)
|
Type number: 437.503 |
3.81 € | |
![[115879] RIEGLER Flange fastening »FA« for short stroke cylinder, Piston Ø 25](/web/image/product.template/200612/image_128/%5B115879%5D%20RIEGLER%20Flange%20fastening%20%C2%BBFA%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2025?unique=e4fe0ed)
|
Type number: 437.513 |
5.24 € | |
![[115889] RIEGLER Pivoting fork fastening »CB« for short stroke cyl., Piston Ø 25](/web/image/product.template/200622/image_128/%5B115889%5D%20RIEGLER%20Pivoting%20fork%20fastening%20%C2%BBCB%C2%AB%20for%20short%20stroke%20cyl.%2C%20Piston%20%C3%98%2025?unique=21bebfa)
|
Type number: 437.523 |
7.74 € | |
![[115903] RIEGLER Fork head »Y« for short stroke cylinder »ACQ«/»ASQ«, Piston Ø 25](/web/image/product.template/200636/image_128/%5B115903%5D%20RIEGLER%20Fork%20head%20%C2%BBY%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB-%C2%BBASQ%C2%AB%2C%20Piston%20%C3%98%2025?unique=7012815)
|
Type number: 438.06D25CQ |
21.97 € | |
![[116943] RIEGLER Sensor »CS1« Kurzhubzyl. »ACQ«/»ASQ«, REED, 2-Draht, M8, NO](/web/image/product.template/267777/image_128/%5B116943%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20Kurzhubzyl.%20%C2%BBACQ%C2%AB-%C2%BBASQ%C2%AB%2C%20REED%2C%202-Draht%2C%20M8%2C%20NO?unique=29932a4)
|
Type number: 235.100-1 |
11.70 € | |
