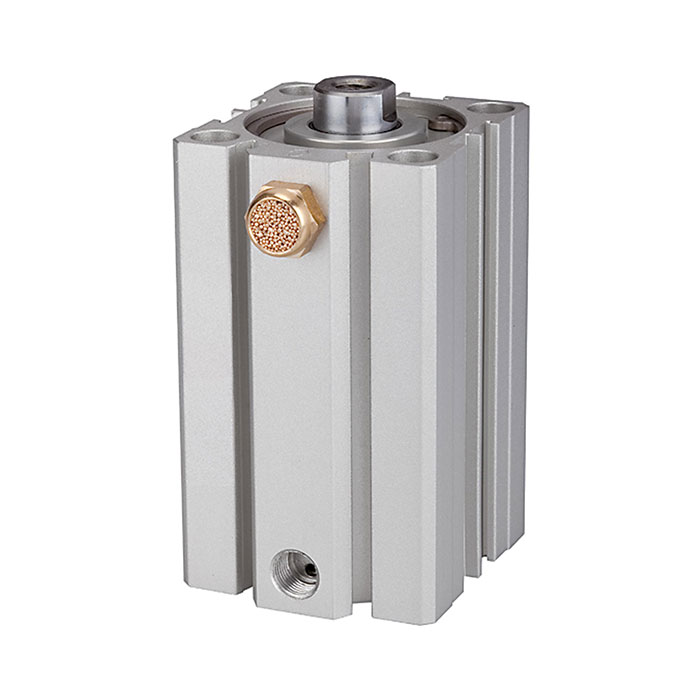

RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 20, G 1/4

Price:

73.60 €
    ​
English (US)
  2. Shop
  3. Pneumatic Cylinder
  4. RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 20, G 1/4
RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 15, G 1/4
RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 15, G 1/4
72.77 €
72.77 €
RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 25, G 1/4
RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 25, G 1/4
74.42 €
74.42 €

RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 20, G 1/4

https://www.filcom-technik.de/web/image/product.template/198754/image_1920?unique=34feb18

Type number: 12.EM.63020

EAN: 4047322329453

73.60 € 73.60000000000001 EUR 73.60 € VAT Included

95.15 € VAT Included

    This combination does not exist.

    from 110 € free shipping Details shipping costs
    Contact Us
    Product no. :
    115207
    Category :
    Short-Stroke Cylinders
    Weight :
    1.05 kg

    Short-stroke cylinder "ASQ" single-acting, solenoid, internal thread, piston Ø 63, stroke 20, connection G 1/4, working pressure 2-10 bar, temp. -20°C to 70°C

    Temperature range min. -20 °C
    Temperature range max. 70 °C
    Sealing material NBR
    Series ASQ series
    Working pressure min. 2 bar
    Working pressure max. 10 bar
    Pipe Aluminum
    Piston Ø 63 mm
    Design 6
    Function single-acting
    Stroke 20 mm
    Piston rod Ø 20 mm
    Piston rods IG M10x1.5
    Connection G 1/4
    Piston rod Steel, hard chrome-plated
    Piston Aluminum
    Class name EASY
    Magnet with magnet
    Starting position retracted without pressure
    Damping without adjustable damping
    Thread piston rod Internal thread on the piston rod
