RIEGLER Angled screw-on fitting »value line«, G 1/4, for hose 10/8 mm
Type number: 13.714-10-E
EAN: 4047322182904
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

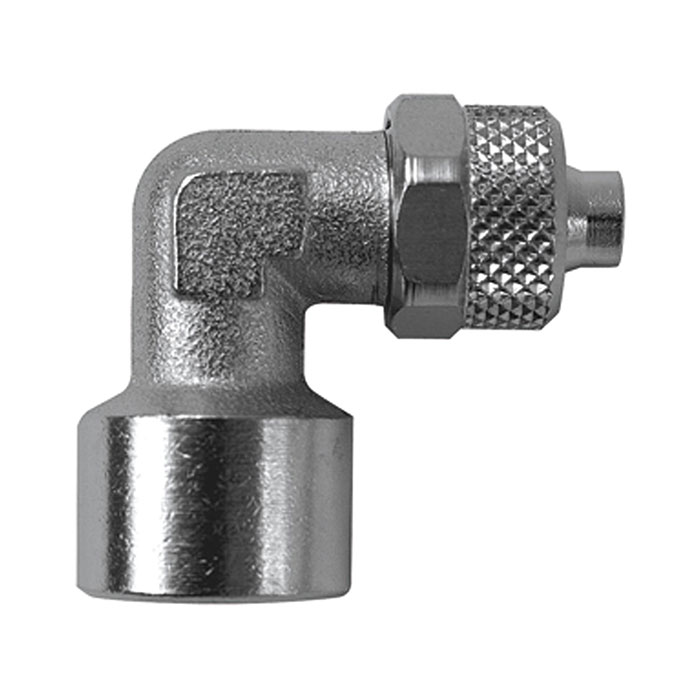

Angled screw-on fitting "value line", G 1/4, for hose 10/8 mm, SW 13, max. operating pressure 18 bar, nickel-plated brass
| Max. operating pressure | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature max. | 200 °C |
| Recommended hose | PA, PE, PU |
| Thread | G 1/4 |
| SW | 13 mm |
| for hose | 10/8 mm |
| L1 | 26 mm |
| L2 | 23.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| O-ring | without |
| Class name | EASY |
