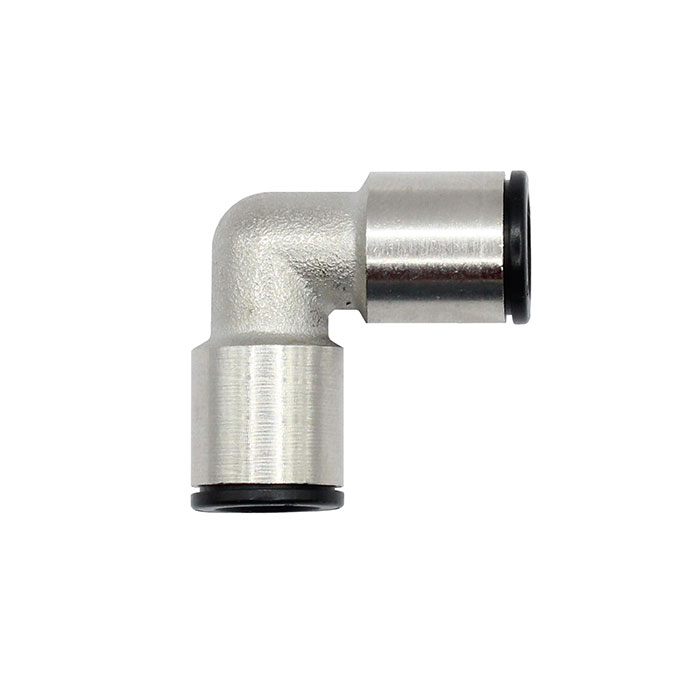

RIEGLER Angled connector »value line«, for hose exterior Ø 4 mm
Type number: 48.004-E
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Winkelverbinder »value line«, Schlauch-Außen-Ø 4, Arbeitsdruck -0,98 bis 16 bar, Betriebstemp. -20 °C bis 80 °C, Messing vern.
| Medium | Compressed air |
| Sealing material | NBR, silicone-free |
| Series | value line |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Solder ring | Hostaform |
| Recommended hose | PA, PU |
| Collet chuck | Stainless steel AISI 316 |
| for hose outer Ø | 4 mm |
| L1 | 17.5 mm |
| L2 | 17.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| O-ring | NBR |
| Class name | EASY |
