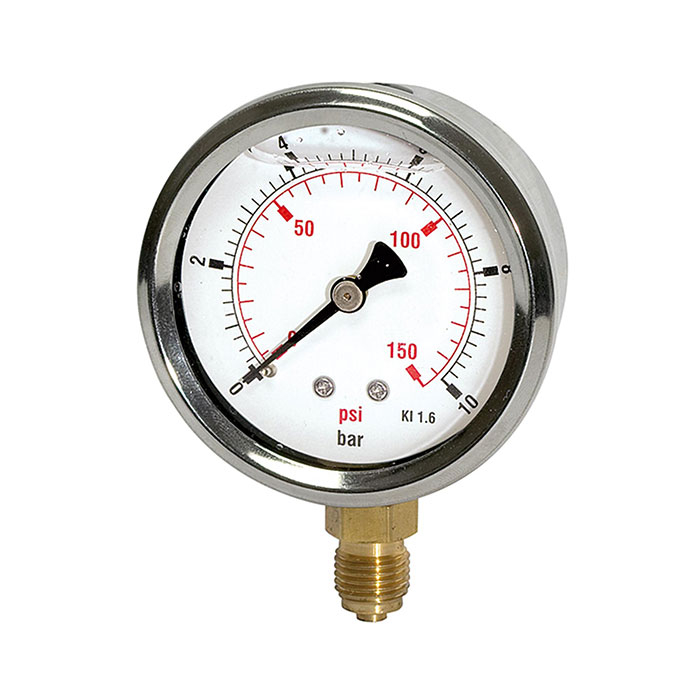

RIEGLER Glycerine pressure gauge »pressure line« G 1/2, 0-10 bar/150 psi

Price:

34.94 €

English (US)
  2. Shop
  3. Glycerine-Filled Pressure Gauges
  4. RIEGLER Glycerine pressure gauge »pressure line« G 1/2, 0-10 bar/150 psi
RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, -1 / +9 bar, Ø 63
RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, -1 / +9 bar, Ø 63
35.76 € 35.76 €
RIEGLER Glycerine pressure gauge »pressure line« G 1/2, 0-16 bar/230 psi
RIEGLER Glycerine pressure gauge »pressure line« G 1/2, 0-16 bar/230 psi
34.94 € 34.94 €

RIEGLER Glycerine pressure gauge »pressure line« G 1/2, 0-10 bar/150 psi

https://www.filcom-technik.de/web/image/product.template/201052/image_1920?unique=16c1d9d

Type number: 727-CDE

34.94 € 34.94 EUR 34.94 € VAT Included

40.78 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

116319

EAN :

4047322176903

Category :

Glycerine-Filled Pressure Gauges

Weight :

0.74 kg

Glycerin mano. "pressure line", stainless steel housing, radial bottom connection, G 1/2, grade 1.6, measuring range 0 - 10.0 bar/150 psi, Ø100

Housing Stainless steel 1.4301
Medium temperature min. -20 °C
Medium temperature max. 60 °C
Ambient temperature min. -20 °C
Ambient temperature max. 60 °C
Measuring element Brass
Pointer movement Brass
Viewing window Glass
Measuring range min. bar 0
Measuring range max. bar 10
Diameter 100 mm
Graduation value in the bar range 0.2 bar
Execution Bourdon tube pressure gauge with glycerine filling
Connection G 1/2
Quality class 45444
Connection position radial bottom
Class name EASY
Process connection material Copper alloy
