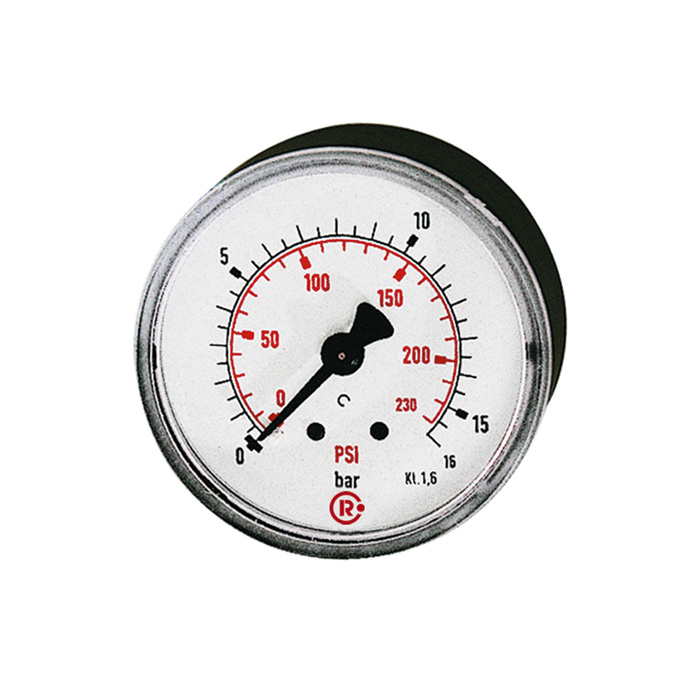

Standard mano, plastic, G 1/4 rear, 0 - 16.0 bar/230 psi, Ø40
Type number: VKRP12ES4408RU
EAN: 4047322014885
Standard pressure gauge, G1/4 at the back, grade 1.6, Ø 40 mm, measuring range 0 - 16 bar, 230 psi, plastic housing
| Housing | Plastic |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | Plastic crystal clear |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 16 |
| Measuring range min. psi | 0 |
| Diameter | 40 mm |
| Graduation value in the bar range | 0.5 bar |
| Connection | G 1/4 |
| Measuring range max. psi | 230 |
| Quality class | 45444 |
| Connection position | rear, centric |
| Class name | PLUS |
