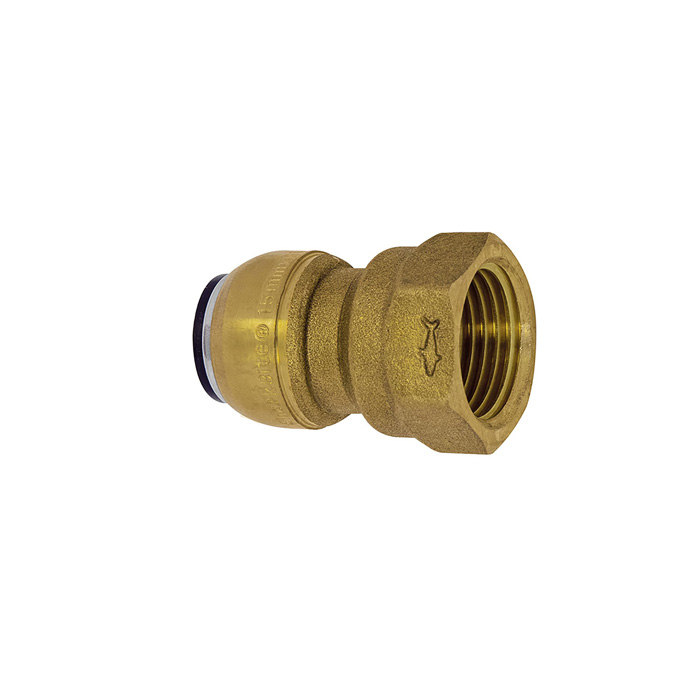

RIEGLER Screw-on connector, MS, "sharkbite", G 3/4, for outer pipe ø 22 mm
Type number: AVMNG34
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Screw-on connection, Brass, »sharkbite«, G 3/4, for pipe exterior ø 22 mm
| Working pressure min. | -0.95 bar |
| Working pressure max. | 20 bar |
| Material | Brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 65 °C |
| Thread | G 3/4 |
| Length | 47 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| for pipe outer Ø | 22 mm |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 45047 |
