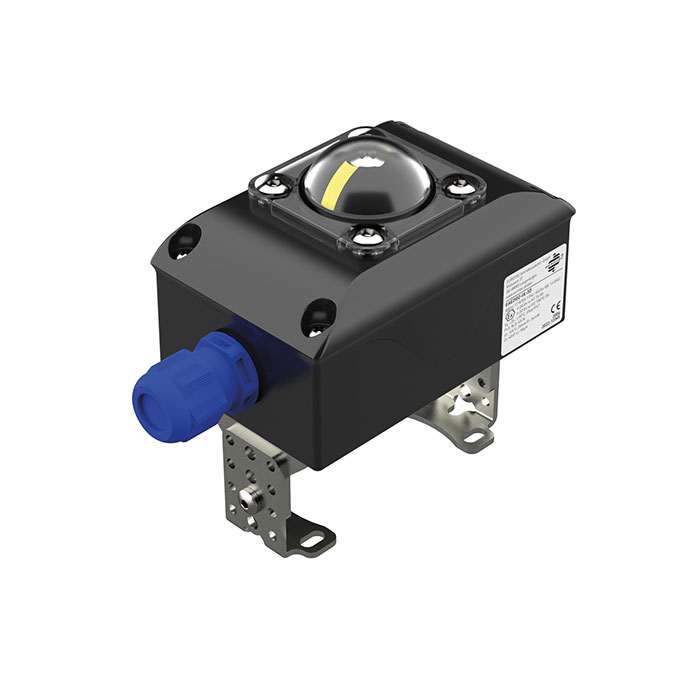

RIEGLER End position feedback aluminum, inductive sensor, ATEX, 8.2V DC
Type number: ELRAISEx
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
End position feedback aluminum, 3D display, inductive sensor ATEX, NAMUR NC contact (NC), 8.2V DC, 1-3 mA, ambient temp. -25 °C to 70 °C
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Execution | with inductive switch ATEX version |
| Exception | 6c |
| CAS No. SVHC 1 | 7439-92-1 |
| Housing | Aluminum |
| Cable gland | M20x1.5 |
| Material identification | CW614N |
| Rated switching capacity | <= 1.0mA / >=2.1mA |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Switching function | Inductive (NAMUR NO/NC) |
| Protection class | IP 66/67, according to DIN EN 60529 |
| Voltage range | 8.2V DC |
| Ambient temperature max. | 70 °C |
| Ambient temperature min. | -25 °C |
