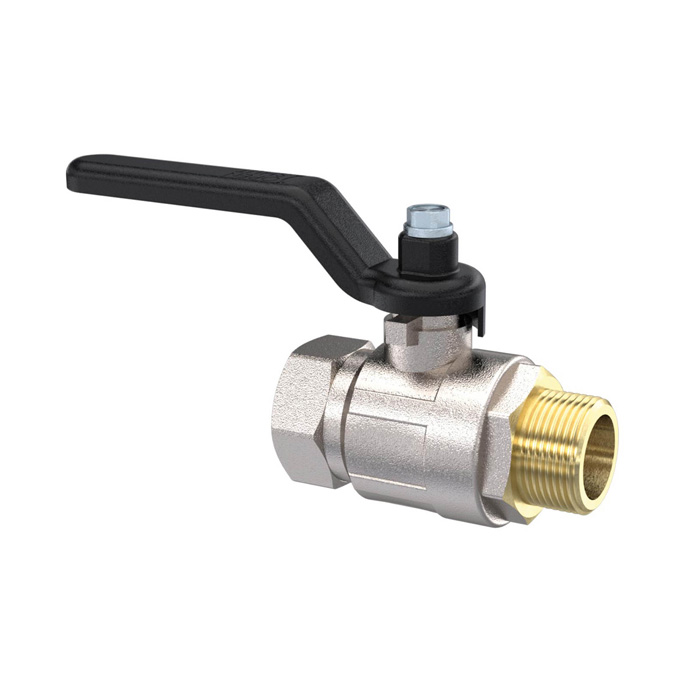

RIEGLER Ball valve standard version, hand lever black, IG/AG, MS ver., G 1 1/4
Type number: 5626B126
EAN: 4047322727952
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve with hand lever black, standard version, IG/AG, MS nickel-plated, operating temp. -20 °C to 150 °C, G 1 1/4, DN 32, PN max. 30 bar
| Material | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR / FKM (seal package consisting of 2 O-rings) |
| Operating temperature | -20 °C to 150 °C (no steam) |
| Thread | G 1/4 |
| DN | 32 |
| PN | 30 bar |
| Thread standard | G-thread to DIN EN ISO 228-1, tolerance class B |
| A | 138 mm |
| B | 75 mm |
| L | 91.5 mm |
| E | 17 mm |
| F | 17 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Thread material | Nickel-plated brass |
| Class name | PLUS |
| Stand Material Compliance | 45148 |
| Hand lever | Galvanized steel, painted black |
| SCIP message number Supplier | 66aa7191-373f-45cf-9f9b-626e44a45f6f |
