RIEGLER Rodless cylinder ZRL1C, Ø 16, stroke 100, standard
Type number: ZRL1C.160100
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Piston rod-free cylinder ZRL1C, Ø 16, Stroke 100, Standard, Working pressure 0,5 - 8 bar, Temp. -10 to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Medium | Filtered compressed air (max. 50 µm) |
| Working pressure min. | 0.5 bar |
| Working pressure max. | 8 bar |
| Installation position | any |
| Sealing tapes | Stainless steel |
| Piston Ø | 16 mm |
| Function | double-acting |
| Stroke | 100 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | M5 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
| Piston caps and sliding parts | abrasion-resistant plastic |
| Stand Material Compliance | 44621 |
| Air connection | 3-fold on both sides |
| Screws | Steel 10.9 galvanized |
| Load clutch | Rigid |
| Sealing material | Oil-resistant plastic (NBR) |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[130867] RIEGLER Piston rod l. Cyl. ZRL1C, Ø 16, stroke 650, standard](/web/image/product.template/273205/image_128/%5B130867%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1C%2C%20%C3%98%2016%2C%20stroke%20650%2C%20standard?unique=3edb3b7)
|
Type number: ZRL1C.160650 |
362.65 € | |

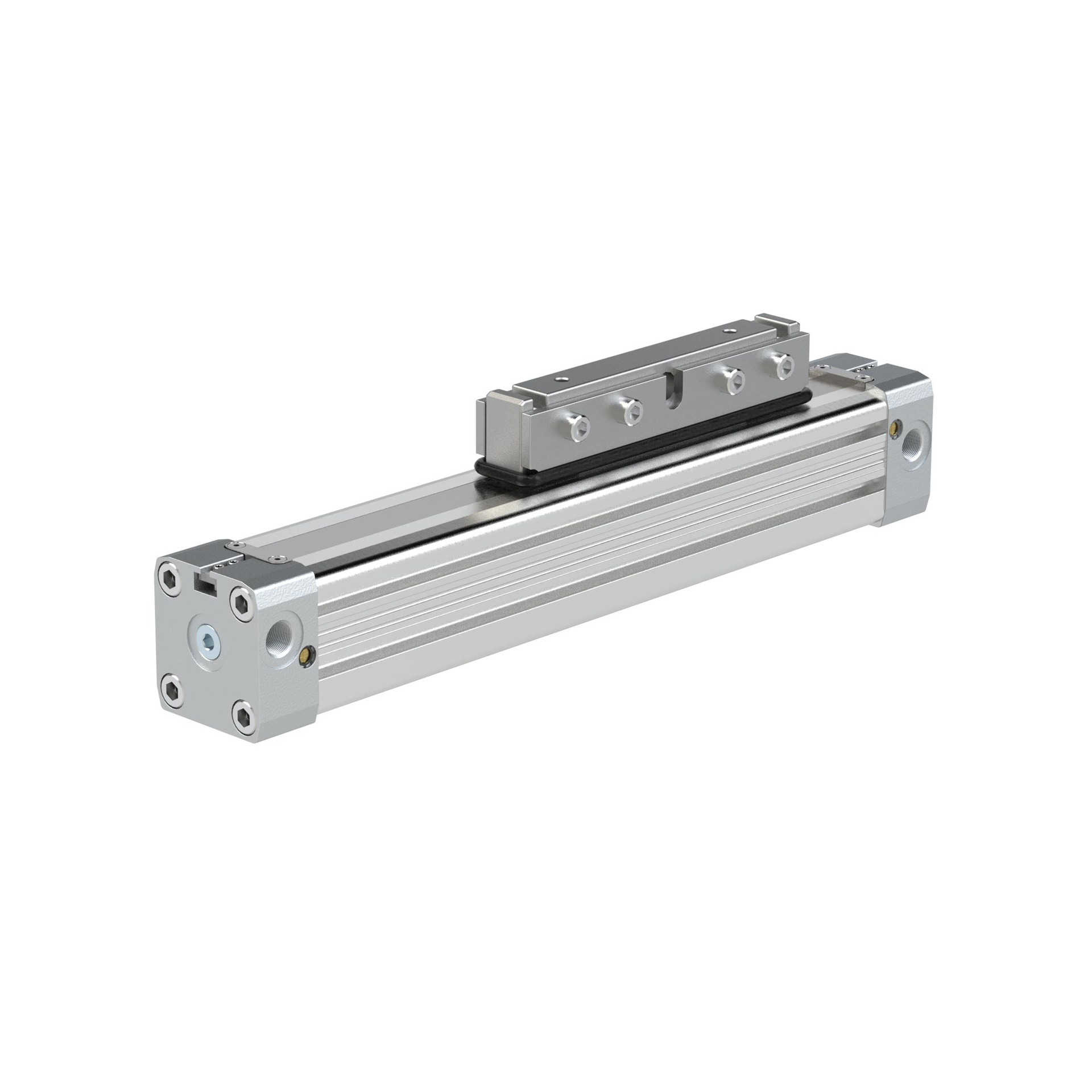

![[147063] RIEGLER Piston rod l. Cyl. ZRL1C, Ø 25, stroke 1420, standard](/web/image/product.template/284053/image_128/%5B147063%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1C%2C%20%C3%98%2025%2C%20stroke%201420%2C%20standard?unique=33c932c)
|
