RIEGLER Contact pressure gauge, G 1/2 radial bottom, measuring range 0 - 4.0 bar, Ø 100

Price:

502.12 €

RIEGLER Contact pressure gauge, G 1/2 radial bottom, measuring range 0 - 2.5 bar, Ø 100
RIEGLER Contact pressure gauge, G 1/2 radial bottom, measuring range 0 - 2.5 bar, Ø 100
502.12 € 502.12 €
RIEGLER Contact pressure gauge, G 1/2 radial bottom, measuring range 0 - 6.0 bar, Ø 100
RIEGLER Contact pressure gauge, G 1/2 radial bottom, measuring range 0 - 6.0 bar, Ø 100
502.12 € 502.12 €

RIEGLER Contact pressure gauge, G 1/2 radial bottom, measuring range 0 - 4.0 bar, Ø 100

https://www.filcom-technik.de/web/image/product.template/273050/image_1920?unique=6b6fd63

Type number: 5624F10L104

EAN: 4047322737609

502.12 € 502.12 EUR 502.12 € VAT Included

649.16 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

129743

EAN :

4047322737609

Weight :

1.46 kg

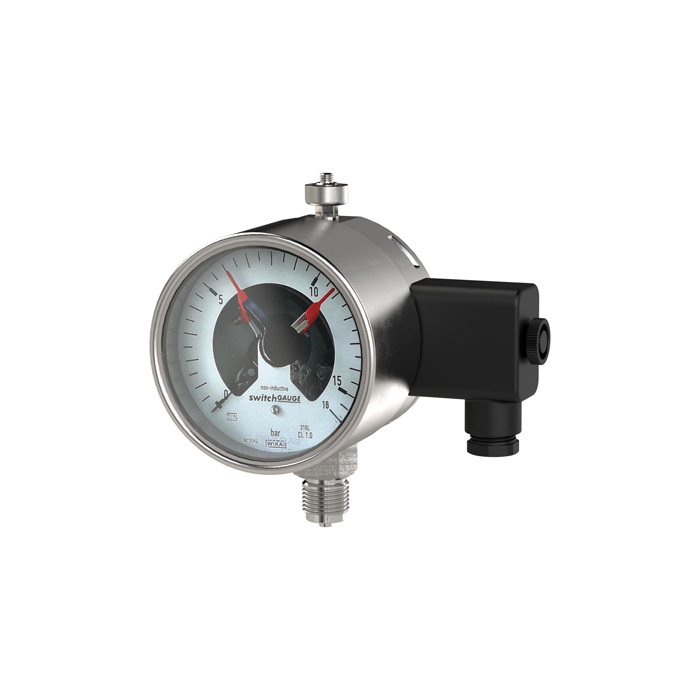

Contact pressure gauge with magnetic snap-action contact, radial bottom connection, G 1/2, type PGS23, grade 1.0, measuring range 0 - 4 bar, Ø 100
Housing Stainless steel 1.4301
Medium temperature min. -20 °C
Medium temperature max. 200 °C
Ambient temperature min. -20 °C
Ambient temperature max. 60 °C
Measuring element CrNi steel
Pointer movement CrNi steel
Viewing window Multi-layer safety glass
Rated operating voltage Ueff max. 250 V
Switching capacity max. 30 W / 50 VA
Measuring range min. bar 0
Measuring range max. bar 4
Diameter 100 mm
Graduation value in the bar range 0.1 bar
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
SCIP message number Supplier no SCIP No. available
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
SCIP message number RIEGLER no SCIP No. available
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Quality class 1
Lower / Upper measuring range limit Overpressure
Ring CrNi steel
Connection position radial bottom
Class name STAINLESS STEEL
Process connection material CrNi steel
Stand Material Compliance 45078
Type PGS23
