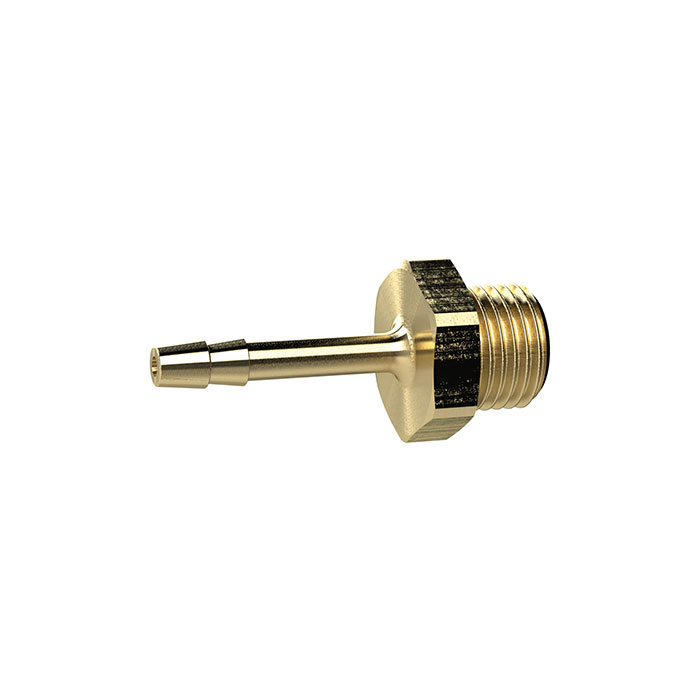

RIEGLER Screw-in hose connector, G 1/2, for hose I.D. 6 mm, AF 24
Type number: MS2391206
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Screw-in hose connector, G 1/2 o., for hose I.D. 6 mm, AF 24, brass, Max. working pressure 25 bar, Max. operating temp. 150 °C
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| Thread | G 1/2 |
| SW | 24 mm |
| for hose | LW 6 mm |
| L1 | 43 mm |
| L2 | 11 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[131003] RIEGLER Screw-in hose connector, G 1/2, for hose I.D. 10 mm, AF 24](/web/image/product.template/202607/image_128/%5B131003%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20G%201-2%2C%20for%20hose%20I.D.%2010%20mm%2C%20AF%2024?unique=e78c035)
|
Type number: MS2391210 |
1.99 € | |
![[132485] RIEGLER Screw-in hose connector, G 1/2, for hose I.D. 12 mm, AF 24](/web/image/product.template/202732/image_128/%5B132485%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20G%201-2%2C%20for%20hose%20I.D.%2012%20mm%2C%20AF%2024?unique=0203b0b)
|
Type number: MS2391212 |
1.99 € | |

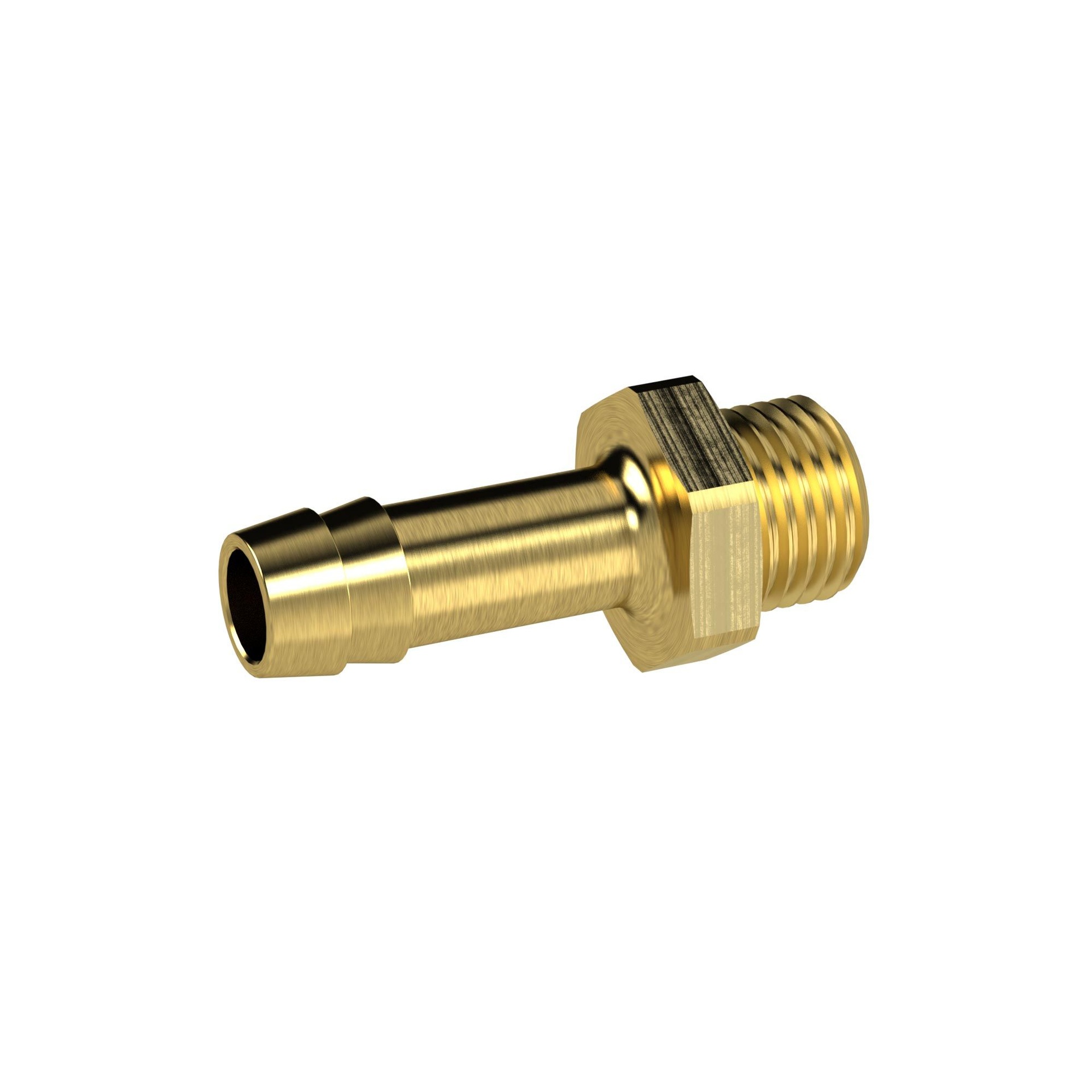

![[131004] RIEGLER Screw-in hose connector, G 1/2, for hose I.D. 13 mm, AF 24](/web/image/product.template/202608/image_128/%5B131004%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20G%201-2%2C%20for%20hose%20I.D.%2013%20mm%2C%20AF%2024?unique=f12bb29)
|
