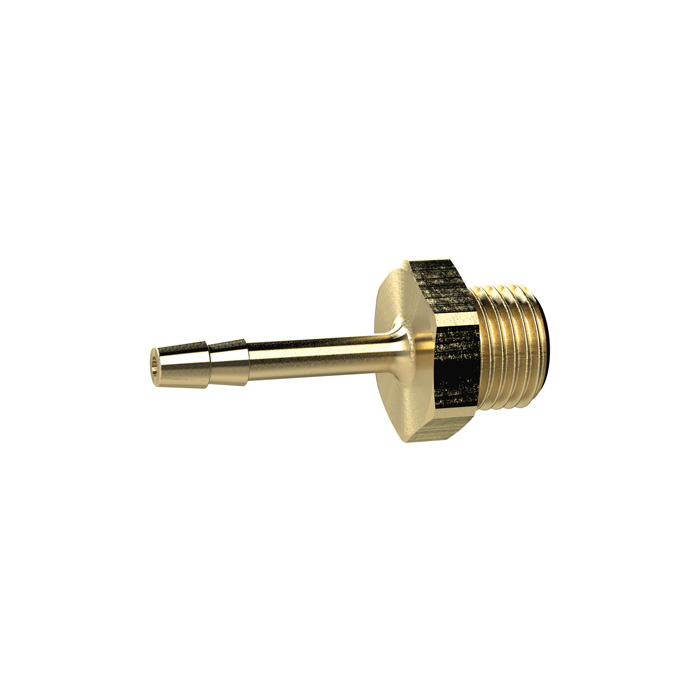

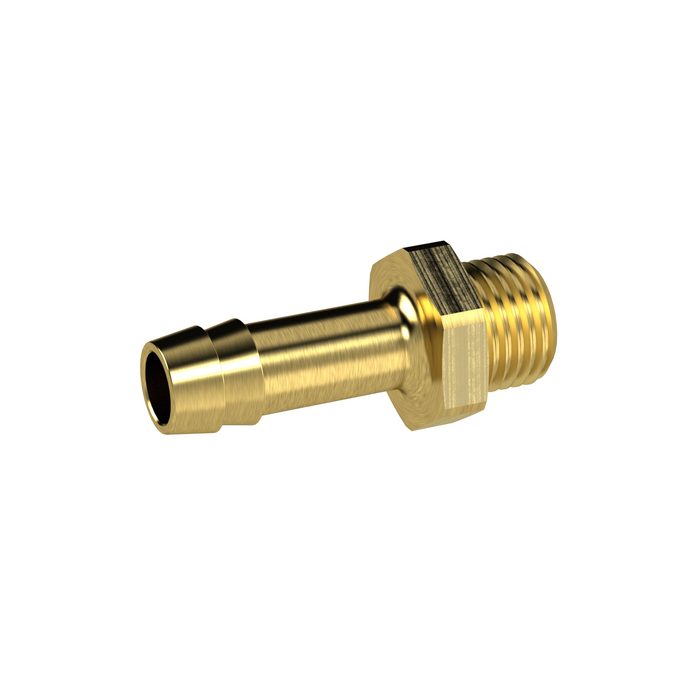

RIEGLER Screw-in hose nozzle, G 3/8, for hose LW 14 mm, SW 19, MS
Type number: MS2393814
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Screw-in hose nozzle, G 3/8 a., for hose LW 14 mm, SW 19, brass, operating pressure max. 25 bar, operating temp. max. 90 °C
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| Thread | G 3/8 |
| SW | 19 mm |
| for hose | LW 14 mm |
| L1 | 42 mm |
| L2 | 9 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | RIEGLER, first distributor |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 45090 |
| SCIP message number RIEGLER | b96226cd-861d-4b13-aad9-e58f8929e5a4 |
