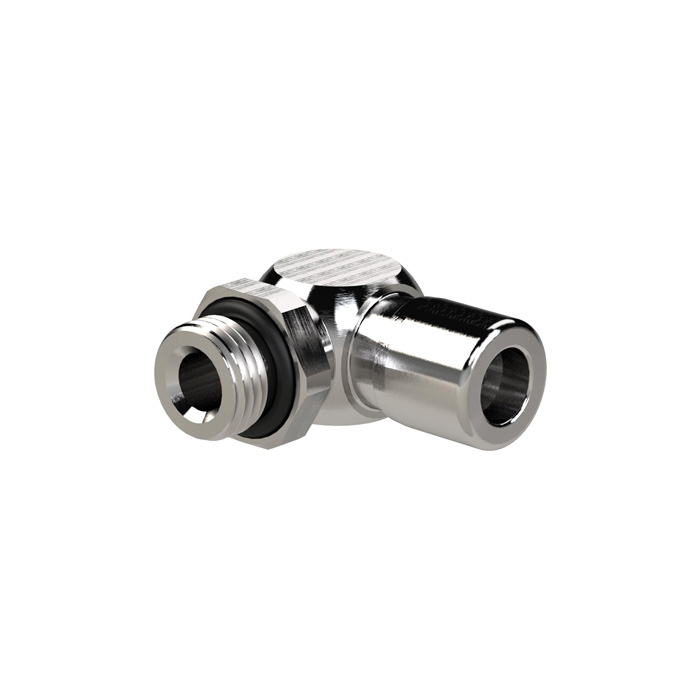

RIEGLER Push-in L-fitting "NonPlusUltra", rotatable, M5, Ø 6 mm, PU 10
Type number: 843.005-6 ES FDA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Push-in L-fitting "NonPlusUltra", rotatable, M5, OD6, FPM (FDA), p = -0.99?25 bar, T = -20?150 °C, ES 1.4404, PU 10 pcs.
| Medium | Compressed air, neutral gases and liquids, oil, grease |
| Sealing material | FPM (FDA-compliant) |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Material | Stainless steel 1.4404 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Thread | M5 |
| L4 | 19.4 mm |
| SW | 8 mm |
| L5 | 14.6 mm |
| for hose outer Ø | 6 mm |
| B | 12 mm |
| L1 | 20.5 mm |
| L2 | 4.5 mm |
| D1 | 11.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| L3 | 23.9 mm |
| Class name | STAINLESS STEEL |
| Stand Material Compliance | 45166 |
| Series | NonPlusUltra |
| Suitable pipe material | PE, PA, PU, PTFE, FEP, pipes |
| Thread standard | DIN 13-1 / DIN ISO 965-1 |
| NW | 2.5 |
