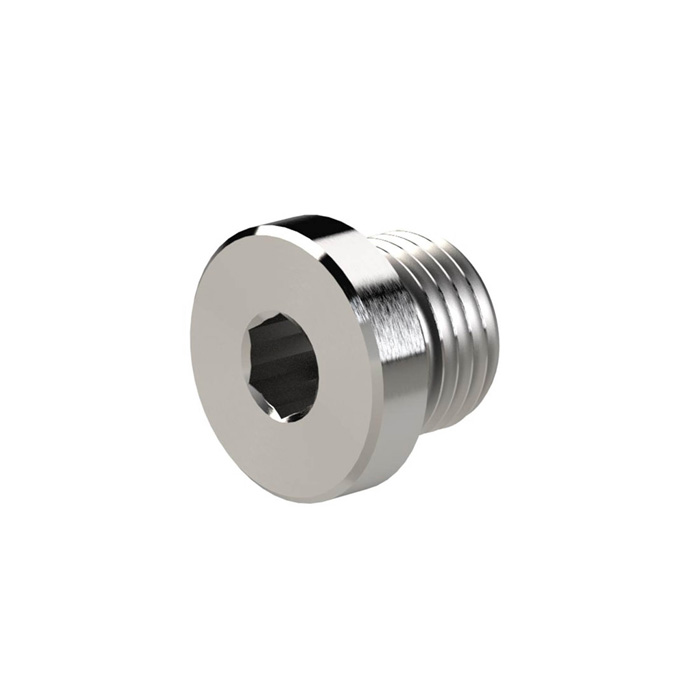

Screw plug "NonPlusUltra", ISK, G1/8, SW5, PU10
Type number: BSF 34-A
EAN: 4047322749220
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Screw plug with "NonPlusUltra" O-ring, ISK, G 1/8, SW 5, FPM (FDA), p = -0.99...25 bar, T= -20...150 °C, ES 1.4404, PU 10
| Medium | Compressed air, neutral gases and liquids, oil, grease |
| Sealing material | FPM (FDA-compliant) |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Material | Stainless steel 1.4404 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Thread | G 1/8 |
| SW | 5 mm |
| L1 | 11 mm |
| L2 | 7 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
| Stand Material Compliance | 45166 |
| Series | NonPlusUltra |
| Suitable pipe material | PE, PA, PU, PTFE, FEP, pipes |
| Thread standard | DIN ISO 228-1 |
| D1 | 14 mm |
